Grease separator EasyClean ground

Multi, Direct-R, NS 10, T 170 mm, D 400

96010-DR-170D
96010-DR-170D
96010-DR-170D
PDF product data sheet

KESSEL Grease separator EasyClean ground, disposal Direct, nominal size 10, load class D 400, underground installation, installation depth 1150 - 1630 mm, type of disposal manual with suction hose, flow direction right, Cistern

  • Low odour and clean disposal
  • Defined disposal point
  • Complete emptying of the separator
Item no. 96010-DR-170D
GTIN 4026092109915
Price group 90

    Grease separator EasyClean ground Multi, Direct-R, NS 10, T 170 mm, D 400

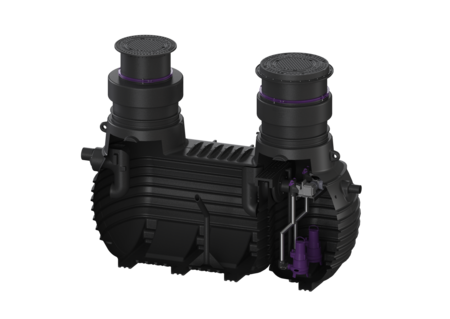

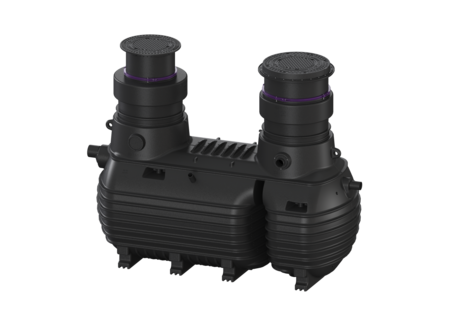

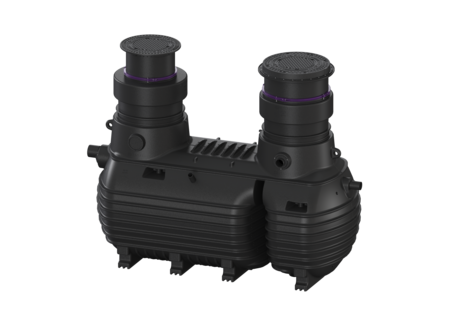

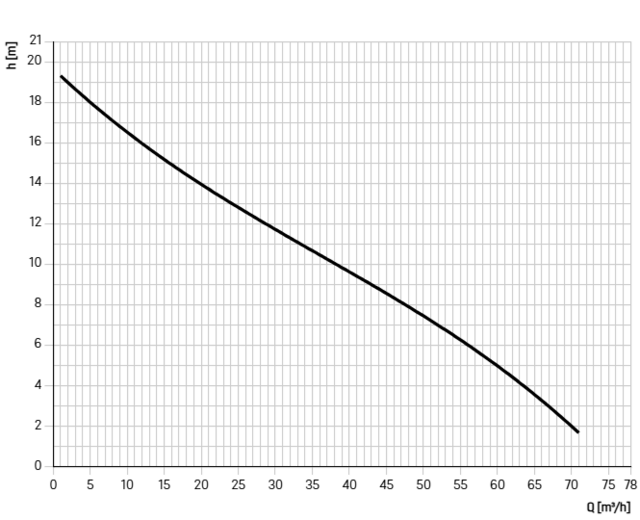

    The unit for an underground installation combines a separator for greasy wastewater incl. sludge trap, a sampling system and a pumping station. The tank of all system parts is made of permanently resistant polymer (PE). The individual system parts can be accessed for cleaning and maintenance work via two inspection covers. A direct disposal pipe socket is available for reduced odour during manual disposal. The pumping station is equipped with two submersible pumps and a backflow preventer. The pumps are actuated via a level sensor. The station is controlled by a user-friendly control unit, which can be connected to the building control system or optionally alarm and collective fault messages can be sent. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20-year polyethylene warranty. Variant Direction of flow: right Chamber system: Cistern Disposal variant: Direct Shredder-Mix-System: no Nominal size (NS): 10 Type of disposal: manual with suction hose General characteristics Installation situation: underground installation Dimensions Groundwater resistant from lower edge of base section: 1800 mm Installation depth: 1150 - 1630 mm Required access area, length: 3720 mm Length: 3490 mm Width: 1670 mm Height of discharge connection: 1310 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Distance pipe bottom inlet to tank bottom: 1250 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 Number of inlets: 1 Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Locking: unlocked Load class: D 400 (EN 124) Wastewater contents Separator contents: 2285 l Max. grease layer thickness: 125 mm Total volume: 3285 l Contents of sludge trap: 1000 l Storage quantity of grease: 400 l Pumping device Pump: GTK 2600 Number of pumps: 1 Weight, pump: 40 kg Connection type: Direct connection Protection class: I Insulation class: H Cos phi - power factor: 0,81 Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 71 m³/h Max. pumping height: 19,6 m Speed: 2900 U/min Power P1: 2,6 kW Power P2: 2,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Single-vane impeller Length of mains cable for pump: 10 m Rated current: 4,5 A Control Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Connection type: Direct connection Multi-line display: yes Battery buffering: yes
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 10
    • Load class (belastungsklasse): D 400 (EN 124)
    • Installation depth (einbautiefe): 1,150  mm
    • Direction of flow (fliessrichtung): right
