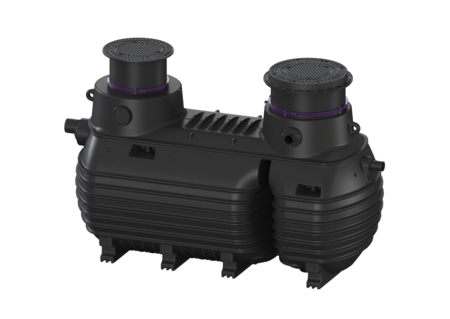

Grease separator EasyClean ground

Multi, Standard, NS 10, T 120 mm, D 400

96010-G-120D
96010-G-120D
96010-G-120D
PDF product data sheet

KESSEL Grease separator EasyClean ground, disposal Standard, nominal size 10, load class D 400, underground installation, installation depth 845 - 1070 mm, type of disposal manual with suction hose, Cistern

  • Vertically adjustable upper section with odour-tight cover plates in various load classes
  • Waterproof, resistant to aggressive wastewater
  • Low-maintenance operation
Item no. 96010-G-120D
GTIN 4026092109762
Price group 60

    Grease separator EasyClean ground Multi, Standard, NS 10, T 120 mm, D 400

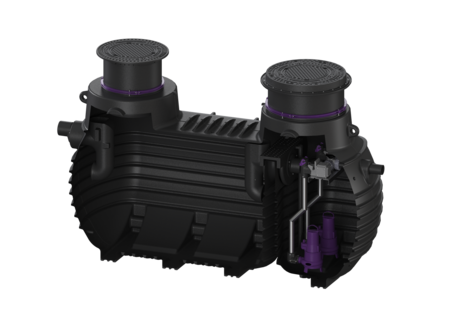

    The unit for an underground installation combines a separator for greasy wastewater incl. sludge trap, a sampling system and a pumping station. The tank of all system parts is made of permanently resistant polymer (PE). The individual system parts can be accessed for cleaning and maintenance work via two inspection covers. Manual disposal takes place with the tank open. The pumping station is equipped with two submersible pumps and a backflow preventer. The pumps are actuated via a level sensor. The station is controlled by a user-friendly control unit, which can be connected to the building control system or optionally alarm and collective fault messages can be sent. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20-year polyethylene warranty. Variant Chamber system: Cistern Disposal variant: Standard Shredder-Mix-System: no Nominal size (NS): 10 Type of disposal: manual with suction hose General characteristics Installation situation: underground installation Dimensions Groundwater resistant from lower edge of base section: 1800 mm Installation depth: 845 - 1070 mm Required access area, length: 3720 mm Length: 3490 mm Width: 1670 mm Height of discharge connection: 1310 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Distance pipe bottom inlet to tank bottom: 1250 mm Inlet nominal size (OD): 160 mm Inlet nominal size (DN): 150 Number of inlets: 1 Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Locking: unlocked Load class: D 400 (EN 124) Wastewater contents Separator contents: 2285 l Max. grease layer thickness: 125 mm Total volume: 3285 l Contents of sludge trap: 1000 l Storage quantity of grease: 400 l Pumping device Pump: GTK 2600 Number of pumps: 1 Weight, pump: 40 kg Connection type: Direct connection Protection class: I Insulation class: H Cos phi - power factor: 0,81 Protection class (pump): IP 68 (20m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 71 m³/h Max. pumping height: 19,6 m Speed: 2900 U/min Power P1: 2,6 kW Power P2: 2,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Single-vane impeller Length of mains cable for pump: 10 m Rated current: 4,5 A Control Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Connection type: Direct connection Multi-line display: yes Battery buffering: yes
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 10
    • Load class (belastungsklasse): D 400 (EN 124)
    • Installation depth (einbautiefe): 845  mm
