Aqualift F XL, 200 L lift. stat.

Duo, SPF 5500-S3, Cast-iron shut-off val

11075
11075

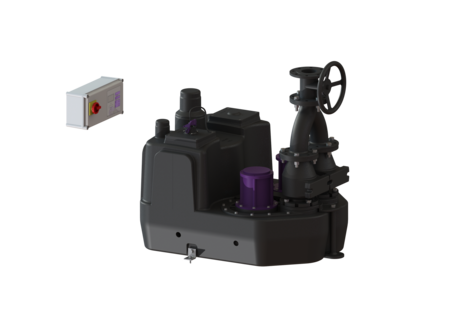

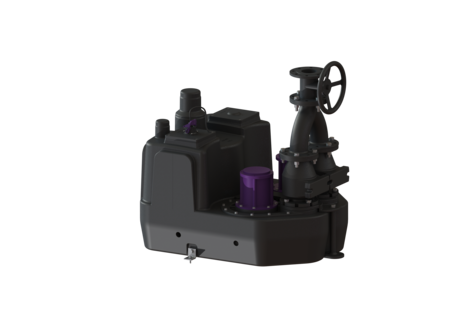

KESSEL Aqualift F XL, 200 L lift. stat. Duo, duo pump, 400 V, shut-off valve Shut-off valve made of cast iron, with 2 submersible SPF 5500 pumps, sound absorption mat yes, alarm generator with Immersion pipe, operating mode S3 - 30 %, pressure pipe connection vertical

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 11075
GTIN 4026092057421
Price group 50

Aqualift F XL, 200 L lift. stat. Duo, SPF 5500-S3, Cast-iron shut-off val
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: Shut-off valve made of cast iron Retaining bracket for the lift protection: yes Sound absorption mat: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) System type: Duo ATEX: no Dimensions Net weight: 192 kg Gross weight: 212 kg Length: 1109 mm Width: 760 mm Height: 1027 mm Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Inlet max. scoring (DN): 200 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 120 l Tank volume: 200 l Pumping device Pump: SPF 5500 Number of pumps: 2 Weight, pump: 38 kg Connection type: Direct connection Rated current: 9,1 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 28 m Speed: 2800 U/min Power P1: 5,7 kW Power P2: 4,8 kW Operating mode: S3 - 30 % Type of pump connection cable: H07RN8-F 6G 1 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
  Title Item no.
  Title Item no.
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Show
28014 Retrofit kit Alarm float switch, for lifting station 28014 Show
28020 Connection adapter Flange socket DN 100, press. pipe PE 28020 Show
28021 Backflow preventer DN 80, grey cast iron 28021 Show
28048 Compressor set for air bubbling 28048 Show
28067 Connection adapter Flange socket DN 80, press. pipe PE 28067 Show
28068 Flange adapter DN 80 to DN 100, Grey iron 28068 Show
28078 Screw set for moulded parts DN80/DN100, M16x65 28078 Show
28662 Flexible coupling DN 80, L: 200 mm 28662 Show
28663 Flexible coupling DN 100, for pressure pipes made of PE 28663 Show
28682 Shut-off valve DN 80, Polymer, horizontal 28682 Show
28683 Shut-off valve DN 100, Polymer, horizontal 28683 Show
28698 Shut-off valve DN 100, Polymer 28698 Show
28699 Shut-off valve DN 150, Polymer 28699 Show
28712 Flange joint DN 100, for polymer fittings 28712 Show
28713 Flange joint DN 80, for polymer fittings 28713 Show
28714 Flange adapter DN 80, for polymer fitting 28714 Show
28715 Shut-off valve DN 80, Polymer, vertical 28715 Show
28716 Shut-off valve DN 80, Polymer, vertical with flange 28716 Show
28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
  Title Item no.
28014 Retrofit kit Alarm float switch, for lifting station 28014 Show
28021 Backflow preventer DN 80, grey cast iron 28021 Show
28041 Shut-off valve DN 80, grey cast iron, with handwheel 28041 Show
28042 Y-pipe DN 80 28042 Show
28043 Seal DN 80, for flange 28043 Show
28050 Immersion pipe 5 m Schlauch, incl. screws 28050 Show
28074 Non-return flap made of polymer, DN 80 28074 Show
28783 Comfort control unit 400V, Aqualift Duo, 2x6.3-10.0 A 28783 Show
680001 Seal Rolling ring, DN 100 680001 Show
680003 Seal DN 150 680003 Show
680034 Battery 9 V block 680034 Show
680045 Seal Pump flange 680045 Show
680046 Attachment bracket with screws (2 ea.) 680046 Show
680047 Screw set galvanised, 14 each 680047 Show
680050 Pump flange SPF 1400 - SPF 4500 680050 Show
680052 Seal for SPF 1400 - SPF 4500 680052 Show
680421 Cleaning cover screwed, DN 160 680421 Show
680727 Pump drive SPF 5500 E 400 V, S3, 5 m cable 680727 Show
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • Pump (pumpe): SPF 5500
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): Shut-off valve made of cast iron
