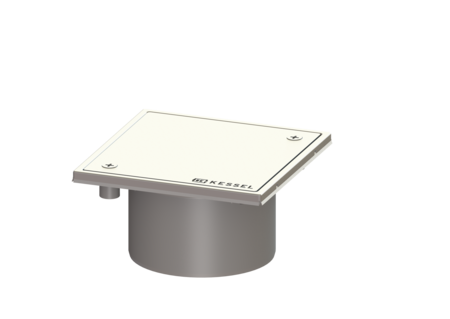

Cleanout
Sys 100, ABS, Cover 304 SST, screw, L15
The cleanout, made of polymer with grating and frame made of stainless steel, serves as an upper section for direct connection on pipes and is equipped with a closed, screwed cover plate.
| Item no. | 27196G |
|---|---|
| GTIN | 4026092054963 |
| Price group | 70 |
Cleanout Sys 100, ABS, Cover 304 SST, screw, L15
The cleanout, made of polymer with grating and frame made of stainless steel, serves as an upper section for direct connection on pipes and is equipped with a closed, screwed cover plate. Variant System: 100 Dimensions Net weight: 0,72 kg Gross weight: 0,79 kg Height: 93 mm Packaging dimension: width: 150 mm Packaging dimension: height: 80 mm Packaging dimension: length: 150 mm Coverage features Type of cover: closed cover plate Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 17 mm Surface: Polished SST Frame material: Stainless steel 14301 Cover locking: screwed Load class: L 15 (EN 1253-1) Rim length: 150 mm Rim material: 150 mm Shape of upper section: square Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data | |
|---|---|
| Test Reports and Certificates |
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
- Type of cover (abdeckungsart): closed cover plate
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Cover locking (verriegelung): screwed
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck):
