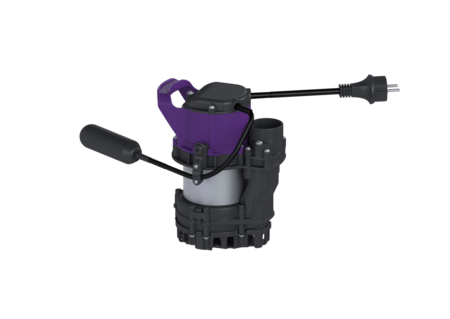

Submersible pump GTF 500

with float switch, 10 m, 230 V

PDF product data sheet

Submersible pump GTF 500 for faecal-free wastewater - housing made of polymer/stainless steel - with longitudinally watertight, moulded connection cable - with float switch for level measurement - with removable intake cage and carry handle - with vertical pressure pipe connection - with multi-vane impeller for maximum operating reliability - with integrated low-level suction

Item no. 280810
GTIN 4026092082515
Discount group 5

Submersible pump GTF 500 with float switch, 10 m, 230 V
Submersible pump GTF 500 for faecal-free wastewater - housing made of polymer/stainless steel - with longitudinally watertight, moulded connection cable - with float switch for level measurement - with removable intake cage and carry handle - with vertical pressure pipe connection - with multi-vane impeller for maximum operating reliability - with integrated low-level suction Version: Pump control: Float switch Type of wastewater: wastewater without sewage General characteristics: Material: Polymer Standard: EN 12050-2 Dimensions: Length: 185 mm Width: 120 mm Height: 220 mm Pressure pipe connection: R 1 1/4" Free passage: 10 mm Pumping device: Pump: GTF 500 Number of pumps: 1 Max. pumping capacity: 12 m3/h Max. pumping height: 8 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S1 Power P1: 500 kW Power P2: 360 kW Speed: 2,800 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: Schuko (earthed contact) 2-pin Weight: 6 kg Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Rated current: 2.5 A Protection class (pump): IP 68 (3m) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated Cos phi - power factor: 0.91 Expected service life (number of switching cycles): 150,000 Expected service life (hours of operation): 1,800 Std Insulation class: F Max. permissible switching frequency: 20 1/h Cable length: 10 m Control: Type of level measurement: mechanical
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Net weight (ATTR-A3A): 6.1  KGM
  • Gross weight (ATTR-A3B): 7.0  KGM
  • Standard (ATTR-9): EN 12050-2
  • Pressure pipe connection (ATTR-149): R 1 1/4"
  • Pump control (ATTR-134): Float switch
  • Cable length (ATTR-190): 10  MTR
  • Declaration of Performance (DOP) (ATTR-292): 009-046
  • Type of level measurement (ATTR-7A): mechanical
  • Free passage (ATTR-180): 10  MMT
  • TÜV test mark (ATTR-376): ID 1111241937
  • Pump (ATTR-4): GTF 500
  • Number of pumps (ATTR-181): 1
  • Impeller type (ATTR-8): Multi-vane impeller
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Max. permissible switching frequency (ATTR-162): 20  1PH
  • Operating mode (ATTR-10): S1
  • Power P1 (ATTR-F4): 500  KWT
  • Power P2 (ATTR-F5): 360  KWT
  • Speed (ATTR-F2): 2,800  UMIN
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 2.5  AMP
  • Max. pumping capacity (ATTR-F7): 12  MQH
  • Max. pumping height (ATTR-F8): 8  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): Schuko (earthed contact) 2-pin
  • Protection class (pump) (ATTR-125): IP 68 (3m)
  • Length of mains cable for pump (ATTR-11): 10  MTR
  • Temperature monitoring (ATTR-135): integrated
  • Weight (ATTR-191): 6  KGM
  • Cos phi - power factor (ATTR-192): 0.9
  • Insulation class (ATTR-193): F
  • Expected service life (hours of operation) (ATTR-194): 1,800  HUR
  • Expected service life (number of switching cycles) (ATTR-195): 150,000
  • Material (ATTR-101): Polymer
  • Brand (M-ATTR-001): KESSEL
  • Length (ATTR-A6A): 185  MMT
  • Width (ATTR-A6B): 120  MMT
  • Height (ATTR-A6C): 220  MMT
  • - (ATTR-370):
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): submersible pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for alternating current
  • E-motor, type of startup (ATTR-271): direct
  • Pump casing material (ATTR-272): Polymer
  • Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
  • Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
  • Pump electrical connection (ATTR-277): 1/N/PE 230V
  • Startup circuit for three-phase connection or three-phase current (ATTR-278):
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): RSSR
  • Number of operating pumps (ATTR-281): 1
  • Minimum pumped media temperature (ATTR-282): 0  CEL
  • Maximum operating pressure (Pmax) (ATTR-283): 800  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Vertical installation (ATTR-286): yes
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 276  MMT
  • Packaging dimension: width (ATTR-326): 241  MMT
  • Packaging dimension: height (ATTR-327): 265  MMT
  • Dimensions (ATTR-323): 276X241X265MM
  • Number of packages (ATTR-321): 0
