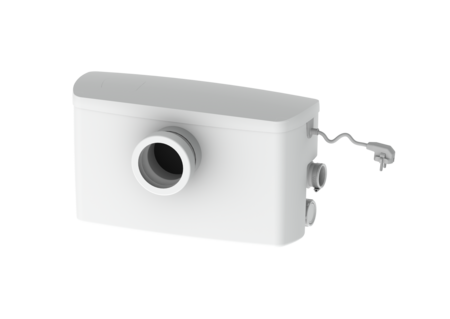

Lifting station Minilift F

Free-standing set-up

PDF product data sheet

The ready to plug in small lifting station for faecal and faecal-free wastewater is suitable for the wastewater drainage of individual toilets. The collection tank made of polymer (ABS) is equipped with a backflow preventer, an activated carbon filter, an alarm function, a horizontal inlet DN 100 and two horizontal inlets DN 40. The integrated control unit controls the small lifting station via pneumatic level measurement.

  • High-performance cutting unit SharkTwister
  • Intelligent control technology
  • Easy maintenance
Item no. 28520
GTIN 4026092072899
Discount group 5

Lifting station Minilift F Free-standing set-up

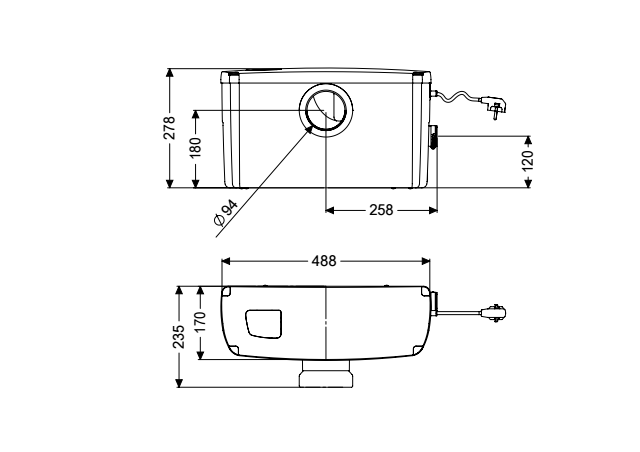

The ready to plug in small lifting station for faecal and faecal-free wastewater is suitable for the wastewater drainage of individual toilets. The collection tank made of polymer (ABS) is equipped with a backflow preventer, an activated carbon filter, an alarm function, a horizontal inlet DN 100 and two horizontal inlets DN 40. The integrated control unit controls the small lifting station via pneumatic level measurement. Version: Type of system: Single station Backflow preventer: integrated Delivery state: plug-in ready Installation situation: free-standing set-up Type of wastewater: wastewater with sewage General characteristics: Colour: white Standard: EN 12050-3 Dimensions: Length: 488 mm Width: 237 mm Height: 285 mm Tank: Number of inlets: 3 ST Inlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Distance from centre of outlet pipe to tank bottom: 108 mm Distance from centre of inlet pipe to tank bottom: 180 mm Tank volume: 11 l Pressure pipe connection: horizontal Pressure pipe connection (OD): 28 mm Pumping volume: 4 l Pumping device: Number of pumps: 1 Max. pumping height: 6.4 m Operating mode: S3 - 30 % Power P1: 0.65 kW Power P2: 0.35 kW Speed: 2,900 U/min Max. temperature (permanent) of conveyed material: 40 °C Connection type: Schuko (earthed contact) 2-pin Impeller type: Macerator Length of mains cable for pump: 1.6 m Rated current: 2.8 A Protection class (pump): IP 44 Protection class: I Type of pump connection cable: H03 VV-F 3G 0.75 mm2 Temperature monitoring: integrated Control: Operating voltage: 230 V Mains frequency: 50 Hz Type of level measurement: pneumatic
