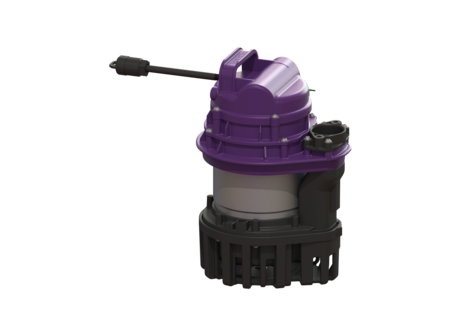

Submersible pump GTF 1000 / KTP 1000

without float switch, 10 m, 230 V

PDF product data sheet

Submersible pump for faecal-free wastewater, type KTP 1000, new designation: GTF 1000

Item no. 28760
GTIN 4026092044520
Discount group 5

Submersible pump GTF 1000 / KTP 1000 without float switch, 10 m, 230 V
Submersible pump for faecal-free wastewater, type KTP 1000, new designation: GTF 1000 Type of wastewater: wastewater without sewage General characteristics: Standard: EN 12050-2 Pressure pipe connection: R 1 1/4" Pumping device: Pump: GTF 1000 Max. pumping capacity: 14 m3/h Max. pumping height: 10 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S3 - 50 % Power P1: 1.3 kW Power P2: 0.75 kW Speed: 2,700 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 35 °C Connection type: coded plug Length of mains cable for pump: 10 m Rated current: 5.6 A Protection class (pump): IP 68 (3m) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated Cos phi - power factor: 0.97 Expected service life (number of switching cycles): 150,000 Expected service life (hours of operation): 5,000 Std Insulation class: F Max. permissible switching frequency: 20 1/h
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Impeller 680035
Suction basket 680361
(680364) 680364
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Net weight (ATTR-A3A): 9.7  KGM
  • Gross weight (ATTR-A3B): 11.0  KGM
  • Standard (ATTR-9): EN 12050-2
  • Pressure pipe connection (ATTR-149): R 1 1/4"
  • Declaration of Performance (DOP) (ATTR-292): 009-046
  • Declaration of conformity (ATTR-303): 009-097
  • TÜV test mark (ATTR-376): ID 1111241937
  • Pump (ATTR-4): GTF 1000
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Max. permissible switching frequency (ATTR-162): 20  1PH
  • Operating mode (ATTR-10): S3 - 50 %
  • Power P1 (ATTR-F4): 1.3  KWT
  • Power P2 (ATTR-F5): 0.8  KWT
  • Speed (ATTR-F2): 2,700  UMIN
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 5.6  AMP
  • Max. pumping capacity (ATTR-F7): 14  MQH
  • Max. pumping height (ATTR-F8): 10  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 35  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): coded plug
  • Protection class (pump) (ATTR-125): IP 68 (3m)
  • Length of mains cable for pump (ATTR-11): 10  MTR
  • Temperature monitoring (ATTR-135): integrated
  • Cos phi - power factor (ATTR-192): 1.0
  • Insulation class (ATTR-193): F
  • Expected service life (hours of operation) (ATTR-194): 5,000  HUR
  • Expected service life (number of switching cycles) (ATTR-195): 150,000
