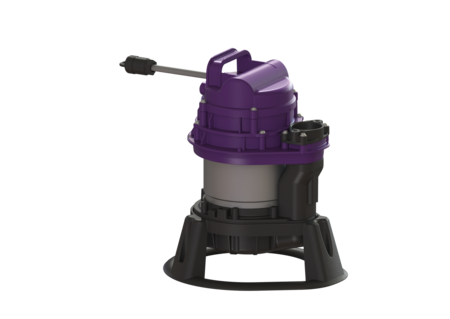

Submersible pump Aquadive STZ1000

without float switch, 10 m

Replacement pump Aquadive without ATEX, with macerator, without float control.

  • Multi-vane vortex impeller for maximum reliability
  • Longitudinally watertight potted connection cable
  • Integrated shallow extraction
Item no. 28779
GTIN 4026092055885
Price group 20

    Submersible pump Aquadive STZ1000 without float switch, 10 m
    Replacement pump Aquadive without ATEX, with macerator, without float control. Variant Rim width: without float switch General characteristics Material: Polymer Standard: EN 12050-1 Type of wastewater: with sewage Cable length: 10 m Dimensions Net weight: 10,52 kg Gross weight: 11 kg Width: 258 mm Height: 294 mm Length: 258 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Packaging dimension: length: 379 mm Wastewater contents Pressure pipe connection: R 1 ¼ " Pumping device Pump control: STZ 1000 Number of pumps: 1 Weight: 10 kg Connection type: coded plug Rated current: 4,9 A Length of mains cable for pump: 10 m Self-diagnosis system (SDS): I Insulation class: F Cos phi - power factor: 0,97 Protection class control unit: IP 68 (3m) DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 30 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Control Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): Polymer
    • Type of wastewater (abwasserart_de): with sewage
    • Pump control (pumpe): STZ 1000
    • Operating voltage (betriebsspannung): 230  V
    • (niveauerfassung_art):
