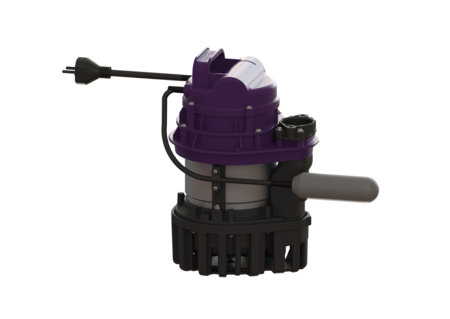

Submersible pump GTF 1000 resistant

with float switch, 10 m, 230 V

PDF product data sheet

Submersible pump for faecal-free wastewater

Item no. 28860C
GTIN 4026092093771
Discount group 5

Submersible pump GTF 1000 resistant with float switch, 10 m, 230 V

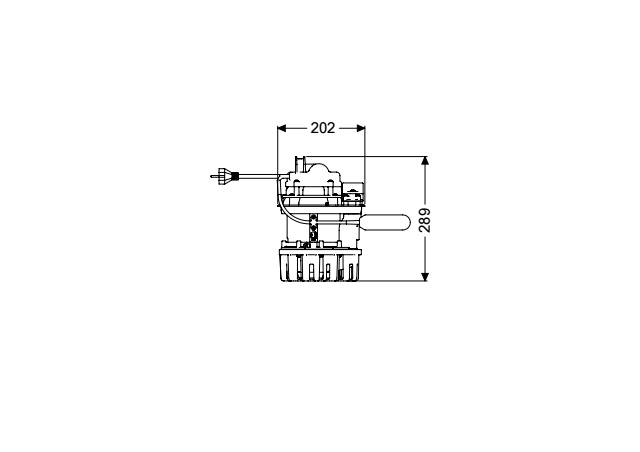

Submersible pump for faecal-free wastewater Version: Pump control: Float switch Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Type of wastewater: wastewater without sewage Dimensions: Length: 195 mm Width: 195 mm Height: 290 mm Pressure pipe connection: R 1 1/4" Free passage: 10 mm Pumping device: Max. pumping capacity: 14 m3/h Max. pumping height: 10 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S3 - 50 % Power P1: 1.3 kW Power P2: 0.75 kW Speed: 2,700 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: coded plug Weight: 10 kg Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Rated current: 5.6 A Protection class (pump): IP 68 (3m) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Insulation class: F Control: Type of level measurement: mechanical
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Impeller 680035
Suction basket 680361
(680364) 680364
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Net weight (ATTR-A3A): 10  KGM
  • Gross weight (ATTR-A3B): 10.5  KGM
  • Pressure pipe connection (ATTR-149): R 1 1/4"
  • Pump control (ATTR-134): Float switch
  • Declaration of Performance (DOP) (ATTR-292): 009-046
  • Type of level measurement (ATTR-7A): mechanical
  • Free passage (ATTR-180): 10  MMT
  • Wastewater quantity (ATTR-310): Medium
  • Pump (ATTR-4):
  • Impeller type (ATTR-8): Multi-vane impeller
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Operating mode (ATTR-10): S3 - 50 %
  • Power P1 (ATTR-F4): 1.3  KWT
  • Power P2 (ATTR-F5): 0.8  KWT
  • Speed (ATTR-F2): 2,700  UMIN
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 5.6  AMP
  • Max. pumping capacity (ATTR-F7): 14  MQH
  • Max. pumping height (ATTR-F8): 10  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): coded plug
  • Protection class (pump) (ATTR-125): IP 68 (3m)
  • Length of mains cable for pump (ATTR-11): 10  MTR
  • Weight (ATTR-191): 10  KGM
  • Insulation class (ATTR-193): F
  • Brand (M-ATTR-001): KESSEL
  • Length (ATTR-A6A): 195  MMT
  • Width (ATTR-A6B): 195  MMT
  • Height (ATTR-A6C): 290  MMT
  • - (ATTR-370):
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): submersible pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for alternating current
  • E-motor, type of startup (ATTR-271): direct
  • Pump casing material (ATTR-272): Polymer
  • Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
  • Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
  • Pump electrical connection (ATTR-277): 1/N/PE 230V
  • Startup circuit for three-phase connection or three-phase current (ATTR-278):
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): RSSR
  • Number of operating pumps (ATTR-281): 1
  • Minimum pumped media temperature (ATTR-282): 0  CEL
  • Maximum operating pressure (Pmax) (ATTR-283): 1,000  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Start-up current (ATTR-285): 14.9  AMP
  • Vertical installation (ATTR-286): yes
  • Resistant (ATTR-338): Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems
