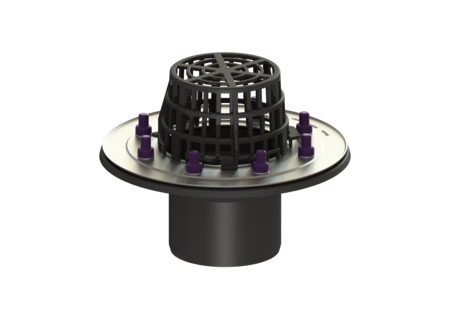

Roof drain for flat roof surfaces Ecoguss

Press. fl., DN 100, with leaf trap

PDF product data sheet

The Ecoguss roof drain for flat roof surfaces is used for point drainage and is equipped with a pressure sealing flange as well as a gravel trap. The recyclable composite material Ecoguss fulfils the highest sound protection requirements, is resistant to aggressive media, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. Separate equipotential bonding is not necessary. Note: Please consult the KESSEL Service Centre for trapezoidal roof areas greater than 2500 sqm.

  • Made of recyclable composite
  • Permanently corrosion-free surface
Item no. 45950
GTIN 4026092001318
Discount group 1

Roof drain for flat roof surfaces Ecoguss Press. fl., DN 100, with leaf trap
The Ecoguss roof drain for flat roof surfaces is used for point drainage and is equipped with a pressure sealing flange as well as a gravel trap. The recyclable composite material Ecoguss fulfils the highest sound protection requirements, is resistant to aggressive media, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. Separate equipotential bonding is not necessary. Note: Please consult the KESSEL Service Centre for trapezoidal roof areas greater than 2500 sqm. Version: System: 100 Type of waterproofing layer: single waterproofing layer Heating: without Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Dimensions: Length: 246 mm Width: 246 mm Height: 182 mm Cutout dimension, length: 180 mm Cutout dimension, width: 180 mm Diameter: 120 mm Drain body: Material of drain body: PP Coverage features: Type of cover: Leaf trap Cover material: Polymer Colour of cover: black Length: 120 mm Width: 120 mm Height: 80 mm Shape of upper section: round Upper section material: PP
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Slotted cover round, d: 362 mm, Polymer 850134
  • Nominal size (DN) (ATTR-118): 100
  • Waterproofing layer on the drain body (ATTR-250): Press sealing flange (suitable for creating watertight seals)
  • Complete article (ATTR-254): yes
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Shape of upper section (ATTR-259): round
  • Type of drainage (ATTR-260): Point drain
  • Grating/channel shape (ATTR-261): round
  • Type of drainage (ATTR-263): open channel
  • - (ATTR-340):
  • Country of origin (ATTR-322): DE
  • Outer diameter (OD) (ATTR-147): 110
  • Upper section material (ATTR-231): PP
  • Material of drain body (ATTR-232): PP
  • Type of waterproofing layer (ATTR-170): single waterproofing layer
  • Heating (ATTR-224): without
  • System (ATTR-244): 100
  • Length (ATTR-A6A): 246  MMT
  • Width (ATTR-A6B): 246  MMT
  • Height (ATTR-A6C): 182  MMT
  • Diameter (ATTR-107): 120  MMT
  • Cutout dimension, length (ATTR-160): 180  MMT
  • Cutout dimension, width (ATTR-161): 180  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 247  MMT
  • Packaging dimension: width (ATTR-326): 247  MMT
  • Packaging dimension: height (ATTR-327): 180  MMT
  • Dimensions (ATTR-323): 247X247X180MM
  • Number of packages (ATTR-321): 0
  • Type of cover (ATTR-A21): Leaf trap
  • Colour of cover (ATTR-A2A): black
  • Cover material (ATTR-A2E): Polymer
  • Length (ATTR-A2M): 120  MMT
  • Width (ATTR-A2N): 120  MMT
  • Height (ATTR-A2P): 80  MMT
  • Diameter (ATTR-A107): 246  MMT
  • Net weight (ATTR-A3A): 0.9  KGM
  • Gross weight (ATTR-A3B): 1.1  KGM
  • Product class, temperature rating (ATTR-223): A
  • Wastewater quantity (ATTR-310): High
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Roof drain for flat roof surfaces
  • Product family (M-ATTR-004): Roof drain for flat roof surfaces
  • Product name (M-ATTR-005): Ecoguss
  • Temperature class (ATTR-253): A
