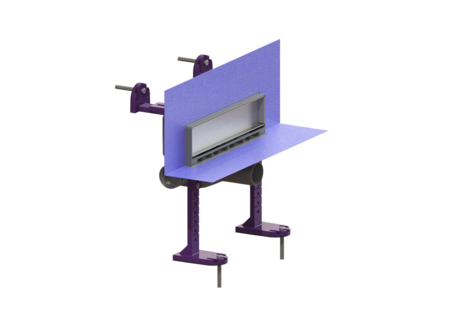

Scada wall drain

w/cov, conc, fixed w/prf membrn

PDF product data sheet

The Scada wall drain is suitable for indoor floor drainage and provides connection options at the front, left and right-hand side.

  • Flexible & convenient installation options
  • Membrane flange attached in the factory
Item no. 48000.01M
GTIN 4026092079119
Discount group 1

Scada wall drain w/cov, conc, fixed w/prf membrn
The Scada wall drain is suitable for indoor floor drainage and provides connection options at the front, left and right-hand side. Version: Lighting: without Odour trap: included Type of waterproofing layer: Waterproofing layer Waterproofing layer on the drain body: Factory-fitted sealing collar (WaD) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 22 mm General characteristics: Nominal size (DN): 50 Outer diameter (OD): 58 Dimensions: Length: 362 mm Width: 195 mm Height: 353 mm Tank: Number of outlets: 1 ST Drain body: Material of drain body: ABS Coverage features: Type of cover: Scada drain cover Grating design: Invisible Colour of cover: selectable Min. flooring height: 15 mm Max. flooring height: 15 mm null: 15 mm Length: 296 mm Height: 61 mm Locking: inserted Grating: Rim material: 304 stainless steel Shape of upper section: square Upper section material: ABS Discharge rate (l/s) with 20 mm backwater: 0.5 l/s
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Drain cover, Scada wall drain Conc, tileable, 304 SST, Flooring 10 mm 48011
Odour trap Linearis, Seal. water height 22 mm 48603
Spare parts set Scada wall drain 680685
  • Nominal size (DN) (ATTR-118): 50
  • Waterproofing layer on the drain body (ATTR-250): Factory-fitted sealing collar (WaD) according to DIN 18534
  • Complete article (ATTR-254): yes
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Shape of upper section (ATTR-259): square
  • Type of drainage (ATTR-260): Wall drain
  • Grating/channel shape (ATTR-261): rectangular
  • Type of drainage (ATTR-263): open channel
  • Tested sound insulation as per test report (ATTR-252): P-BA 242/2013
  • - (ATTR-340):
  • Rim material (ATTR-111): 304 stainless steel
  • Water exposure class in accordance to DIN 18534-1 (up to and including) (ATTR-242): W3-I
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • Odour trap (ATTR-115): included
  • Lighting (ATTR-225): without
  • Length (ATTR-A6A): 362  MMT
  • Width (ATTR-A6B): 195  MMT
  • Height (ATTR-A6C): 353  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 395  MMT
  • Packaging dimension: width (ATTR-326): 295  MMT
  • Packaging dimension: height (ATTR-327): 269  MMT
  • Dimensions (ATTR-323): 395X295X269MM
  • Number of packages (ATTR-321): 0
  • Grating design (ATTR-112): Invisible
  • Type of cover (ATTR-A21): Scada drain cover
  • Colour of cover (ATTR-A2A): selectable
  • Locking (ATTR-A2D): inserted
  • Max. flooring height (ATTR-A2L): 15  MMT
  • Length (ATTR-A2M): 296  MMT
  • Height (ATTR-A2P): 61  MMT
  • Min. flooring height (ATTR-A2O): 15  MMT
  • - (ATTR-336): 15  MMT
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): ABS
  • Net weight (ATTR-A3A): 1.8  KGM
  • Gross weight (ATTR-A3B): 2.3  KGM
  • NDOP (ATTR-304): 009-058
  • Wastewater quantity (ATTR-310): Low
  • Overall height (ATTR-313): min. 63 mm
  • Outer diameter (OD) (ATTR-147): 58
  • Sealing water height (ATTR-128): 22  MMT
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 0.5  LTS
  • Upper section material (ATTR-231): ABS
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Wall drain
  • Product family (M-ATTR-004): Scada
  • Product name (M-ATTR-005): Scada
