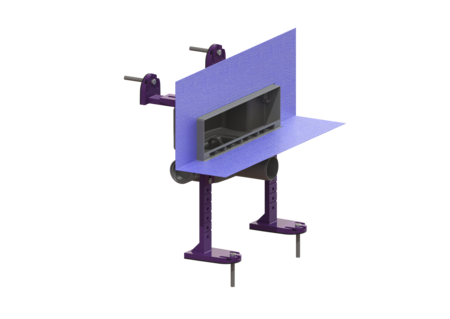

Drain body, Scada wall drain

DN 50, with fixed waterproofing membrane

PDF product data sheet

Used in combination with Scada drain covers, the drain body for Scada wall drains is suitable for indoor wall/floor drainage, is equipped with an odour trap and provides connection options at the front, left and right-hand side.

  • Award-winning design
  • Flexible & convenient installation options
Item no. 48000M
GTIN 4026092079096
Discount group 1

Drain body, Scada wall drain DN 50, with fixed waterproofing membrane
Used in combination with Scada drain covers, the drain body for Scada wall drains is suitable for indoor wall/floor drainage, is equipped with an odour trap and provides connection options at the front, left and right-hand side. Version: System: 125 Odour trap: included Type of waterproofing layer: Waterproofing layer Heating: without Waterproofing layer on the drain body: Factory-fitted sealing collar (WaD) according to DIN 18534 Sealing water height: 22 mm General characteristics: Nominal size (DN): 50 Outer diameter (OD): 58 Dimensions: Length: 362 mm Width: 195 mm Height: 353 mm Tank: Number of outlets: 1 ST Drain body: Material of drain body: ABS Socket version: lateral Grating: Rim material: ABS Upper section material: ABS Discharge rate (l/s) with 20 mm backwater: 0.5 l/s
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Odour trap Linearis, Seal. water height 22 mm 48603
  • Waterproofing layer on the drain body (ATTR-250): Factory-fitted sealing collar (WaD) according to DIN 18534
  • Temperature class (ATTR-253): A
  • Complete article (ATTR-254): no
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Type of drainage (ATTR-260): Wall drain
  • Type of drainage (ATTR-263): open channel
  • Tested sound insulation as per test report (ATTR-252): P-BA 242/2013
  • - (ATTR-340):
  • Advantages text (M-ATTR-007): Award-winning design and 100% accessibility thanks to wall installation
  • Country of origin (ATTR-322): DE
  • - (ATTR-370):
  • Rim material (ATTR-111): ABS
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • Odour trap (ATTR-115): included
  • Heating (ATTR-224): without
  • System (ATTR-244): 125
  • Socket version (ATTR-233): lateral
  • Length (ATTR-A6A): 362  MMT
  • Width (ATTR-A6B): 195  MMT
  • Height (ATTR-A6C): 353  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 400  MMT
  • Packaging dimension: width (ATTR-326): 300  MMT
  • Packaging dimension: height (ATTR-327): 270  MMT
  • Dimensions (ATTR-323): 400X300X270MM
  • Number of packages (ATTR-321): 0
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): ABS
  • Net weight (ATTR-A3A): 1.2  KGM
  • Gross weight (ATTR-A3B): 1.9  KGM
  • NDOP (ATTR-304): 009-058
  • Wastewater quantity (ATTR-310): Low
  • Overall height (ATTR-313): min. 63 mm
  • Nominal size (DN) (ATTR-118): 50
  • Outer diameter (OD) (ATTR-147): 58
  • Sealing water height (ATTR-128): 22  MMT
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 0.5  LTS
  • Upper section material (ATTR-231): ABS
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Wall drain body
  • Product family (M-ATTR-004): Scada
  • Product name (M-ATTR-005): Scada
