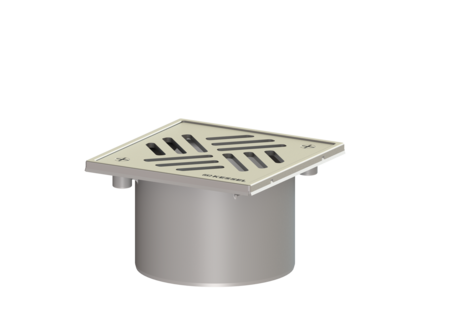

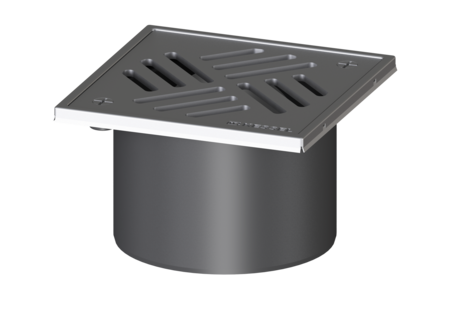

Upper section

Slot cover, 304 SST, 150 x 150 mm, L 15

Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage.

  • Multiple combinations with suitable drain bodies
Item no. 48951
GTIN 4026092004623
Price group 10

    Upper section Slot cover, 304 SST, 150 x 150 mm, L 15
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant Waterproofing layer on the upper section: Connection flange Dimensions Net weight: 0,7 kg Gross weight: 0,78 kg Height: 93 mm Packaging dimension: width: 200 mm Packaging dimension: height: 175 mm Packaging dimension: length: 200 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 18 mm Frame material: Stainless steel 14301 Cover locking: screwed Load class: L 15 (EN 1253-1) Rim length: 150 mm Rim material: 150 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
    Intermediate part with flange, syst. 200 27298 Show
    Adapter DN 100/70 27602 Show
    Installation adhesive 2C installation mortar 48650 Show
    Waterproofing membrane for joint sealing, liquid 48651 Show
    Extension section Pressure sealing flange, Mating flange 48958 Show
    Membrane for System 200, Waterproof concrete 48982 Show
    Extension section System 200, H: 175 mm 48988 Show
      Title Item no.
    Slotted cover solid, screwed 680241 Show
    Slotted cover solid , 138x138mm, stainless steel, L 15 680242 Show
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
