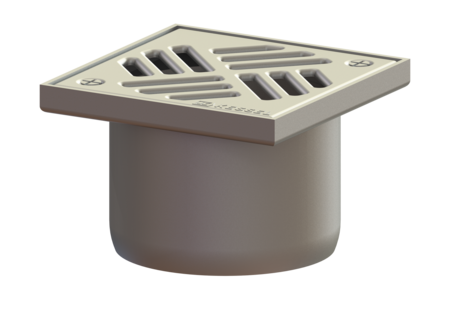

Ferrofix upper section

Sys 125, Slot cover, 146 x 146 mm, K3

Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage.

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 48977
GTIN 4026092004630
Price group 70

    Ferrofix upper section Sys 125, Slot cover, 146 x 146 mm, K3
    Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. Variant System: 125 Waterproofing layer on the upper section: Connection flange Dimensions Net weight: 1,18 kg Gross weight: 1,28 kg Height: 100 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Packaging dimension: length: 215 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 17 mm Surface: Polished SST Cover locking: screwed Load class: K 3 (EN 1253-1) Rim length: 146 mm Rim material: 146 mm Shape of upper section: square Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    Slotted cover 138x138 mm, SST 27154 Show
    Slotted cover 138x138 mm, screwed 27155 Show
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
