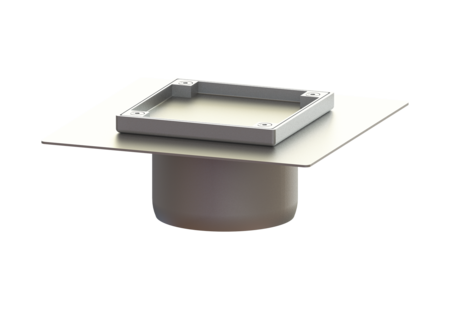

Ferrofix cleanout
Sys 125, Gl fl., tileable, odour-tight
The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed cover plate.
- Made of a particularly hygienic and mechanically highly resistant stainless steel
| Item no. | 54911 |
|---|---|
| GTIN | 4026092072394 |
| Price group | 70 |
Ferrofix cleanout Sys 125, Gl fl., tileable, odour-tight
The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed cover plate. Variant System: 125 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Dimensions Net weight: 2,14 kg Gross weight: 2,3 kg Width: 246 mm Height: 100 mm Length: 246 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Packaging dimension: length: 247 mm Coverage features Type of cover: tileable cover plate Cover material: Stainless steel 14301 Height of cover: 15 mm Surface: Polished SST Cover locking: screwed Load class: L 15 (EN 1253-1) Tightness: odour-tight Rim length: 146 mm Rim material: 146 mm Max. flooring height: 15 mm Shape of upper section: square Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): tileable cover plate
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Cover locking (verriegelung): screwed
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Adhesive flange (suitable for moisture barriers)
