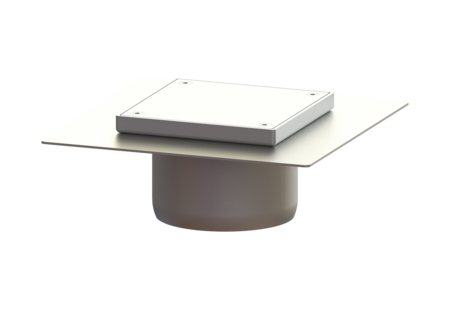

Ferrofix cleanout
Sys 125, Gl fl., odour-tight
The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed cover plate.
- Made of a particularly hygienic and mechanically highly resistant stainless steel
Item no. | 54913 |
---|---|
GTIN | 4026092072417 |
Price group | 70 |
Ferrofix cleanout Sys 125, Gl fl., odour-tight
The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed cover plate. Variant System: 125 Dimensions Net weight: 2,89 kg Gross weight: 3,05 kg Width: 246 mm Height: 100 mm Length: 246 mm Packaging dimension: width: 280 mm Packaging dimension: height: 260 mm Packaging dimension: length: 280 mm Coverage features Type of cover: closed cover plate Cover material: Stainless steel 14301 Height of cover: 15 mm Surface: Polished SST Cover locking: screwed Load class: L 15 (EN 1253-1) Tightness: odour-tight Rim length: 146 mm Rim material: 146 mm Shape of upper section: square Upper section material: Stainless steel 14301
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
CAD Data |
---|
- Cover material (abdeckung_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck): Stainless steel 14301
- Type of cover (abdeckungsart): closed cover plate
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Cover locking (verriegelung): screwed
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck):
