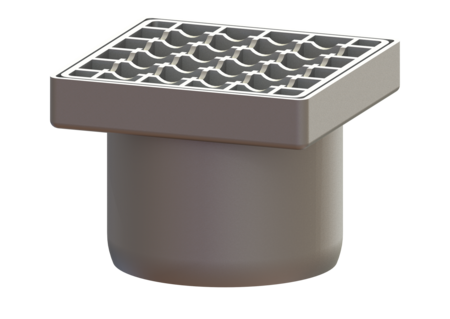

Ferrofix upper section
Sys 125, Slotted grating, 150 x 150 mm
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage.
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
Item no. | 54914 |
---|---|
GTIN | 4026092072448 |
Price group | 70 |
Ferrofix upper section Sys 125, Slotted grating, 150 x 150 mm
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. Variant System: 125 Note on installation depth: For load class M 125, on-site shimming necessary Waterproofing layer on the upper section: Connection flange Dimensions Net weight: 2,08 kg Gross weight: 2,17 kg Height: 100 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Packaging dimension: length: 215 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Height of cover: 28 mm Surface: pickled Cover locking: unlocked Load class: L 15 (EN 1253-1) Rim length: 150 mm Rim material: 150 mm Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
CAD Data |
---|
- Cover material (abdeckung_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck): Stainless steel 14301
