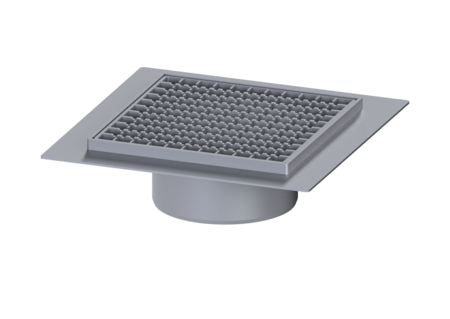

Ferrofix upper section glued flange

Sys 200, Slotted grating, 304 SST, 300 x 300 mm

PDF product data sheet

Used in combination with a drain body of the KESSEL modular system 200, the Ferrofix stainless steel upper section with glued flange is suitable for indoor point drainage.

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 57415-KF
GTIN 4026092095287
Discount group 3

Ferrofix upper section glued flange Sys 200, Slotted grating, 304 SST, 300 x 300 mm
Used in combination with a drain body of the KESSEL modular system 200, the Ferrofix stainless steel upper section with glued flange is suitable for indoor point drainage. Version: System: 200 Type of waterproofing layer: Waterproofing layer Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Dimensions: Length: 400 mm Width: 400 mm Height: 112 mm Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: Slotted cover Cover material: 304 stainless steel Load class: L 15 (EN 1253-1) Height: 15 mm Locking: unlocked Grating: Rim length: 300 mm Rim width: 300 mm Upper section material: 304 stainless steel
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Waterproofing layer on the upper section (ATTR-251): Adhesive flange (suitable for moisture barriers)
  • Advantages text (M-ATTR-007): The robust solution made of a particularly hygienic and mechanically highly resistant stainless steel
  • Rim length (ATTR-111B): 300  MMT
  • Rim width (ATTR-111C): 300  MMT
  • Length (ATTR-A6A): 400  MMT
  • Width (ATTR-A6B): 400  MMT
  • Height (ATTR-A6C): 112  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 440  MMT
  • Packaging dimension: width (ATTR-326): 440  MMT
  • Packaging dimension: height (ATTR-327): 175  MMT
  • Dimensions (ATTR-323): 440X440X175 MM
  • Number of packages (ATTR-321): 0
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • System (ATTR-244): 200
  • Type of cover (ATTR-A21): Slotted cover
  • Load class (ATTR-A2B): L 15 (EN 1253-1)
  • Locking (ATTR-A2D): unlocked
  • Cover material (ATTR-A2E): 304 stainless steel
  • Height (ATTR-A2P): 15  MMT
  • Net weight (ATTR-A3A): 4.2  KGM
  • Gross weight (ATTR-A3B): 4.7  KGM
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Water exposure class in accordance to DIN 18534-1 (up to and including) (ATTR-242): W3-I
  • Upper section material (ATTR-231): 304 stainless steel
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Upper section
  • Product family (M-ATTR-004): Ferrofix
  • Product name (M-ATTR-005): Ferrofix
  • Country of origin (ATTR-322): DE
