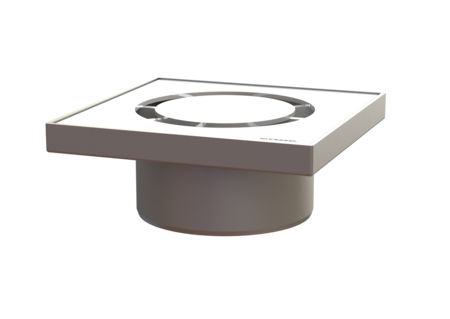

Ferrofix upper section

Sys 200, Inlet rg, 304 SST, 300 x 300 mm

PDF product data sheet

Used in combination with a drain body of the KESSEL modular system 200, the stainless steel upper section is suitable for indoor point drainage.

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies.
Item no. 57435
GTIN 4026092007648
Discount group 3

Ferrofix upper section Sys 200, Inlet rg, 304 SST, 300 x 300 mm
Used in combination with a drain body of the KESSEL modular system 200, the stainless steel upper section is suitable for indoor point drainage. Version: System: 200 Dimensions: Height: 112 mm Coverage features: Type of cover: Cover plate with ring drain Cover material: 304 stainless steel Load class: M 125 (EN 1253-1) Height: 30 mm Locking: unlocked Grating: Rim length: 300 mm Rim width: 300 mm Upper section material: 304 stainless steel
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Advantages text (M-ATTR-007): The robust solution made of a particularly hygienic and mechanically highly resistant stainless steel - class M 125
  • Country of origin (ATTR-322): DE
  • Rim length (ATTR-111B): 300  MMT
  • Rim width (ATTR-111C): 300  MMT
  • Type of cover (ATTR-A21): Cover plate with ring drain
  • Load class (ATTR-A2B): M 125 (EN 1253-1)
  • Locking (ATTR-A2D): unlocked
  • Cover material (ATTR-A2E): 304 stainless steel
  • Height (ATTR-A2P): 30  MMT
  • System (ATTR-244): 200
  • Height (ATTR-A6C): 112  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 360  MMT
  • Packaging dimension: width (ATTR-326): 360  MMT
  • Packaging dimension: height (ATTR-327): 175  MMT
  • Dimensions (ATTR-323): 360X360X175MM
  • Number of packages (ATTR-321): 0
  • Net weight (ATTR-A3A): 8.9  KGM
  • Gross weight (ATTR-A3B): 9.4  KGM
  • Upper section material (ATTR-231): 304 stainless steel
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Upper section
  • Product family (M-ATTR-004): Ferrofix
  • Product name (M-ATTR-005): Ferrofix
