Ferrofix cleanout

Sys 125, Hyg upper section, gastight

PDF product data sheet

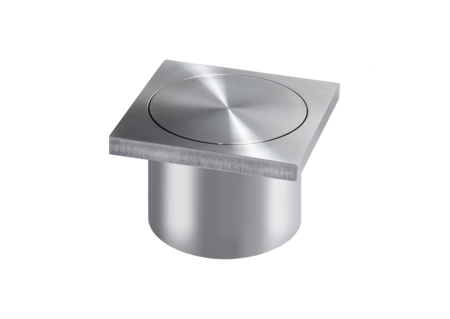

The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed, screwed cover plate.

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
Item no. 59011
Discount group 3

Ferrofix cleanout Sys 125, Hyg upper section, gastight
The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed, screwed cover plate. Version: System: 125 Dimensions: Length: 150 mm Width: 150 mm Height: 100 mm Coverage features: Type of cover: Hygiene upper section Cover material: 304 stainless steel Load class: L 15 (EN 1253-1) Height: 15 mm Tightness: gastight and liquid-tight Locking: screwed Grating: Rim length: 150 mm Rim width: 150 mm Upper section material: 304 stainless steel
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Rim length (ATTR-111B): 150  MMT
  • Rim width (ATTR-111C): 150  MMT
  • Type of cover (ATTR-A21): Hygiene upper section
  • Load class (ATTR-A2B): L 15 (EN 1253-1)
  • Tightness (ATTR-A2C): gastight and liquid-tight
  • Locking (ATTR-A2D): screwed
  • Cover material (ATTR-A2E): 304 stainless steel
  • Height (ATTR-A2P): 15  MMT
  • Length (ATTR-A6A): 150  MMT
  • Width (ATTR-A6B): 150  MMT
  • Height (ATTR-A6C): 100  MMT
  • Number of packages (ATTR-321): 0
  • System (ATTR-244): 125
  • Net weight (ATTR-A3A): 0  KGM
  • Gross weight (ATTR-A3B): 0  KGM
  • Upper section material (ATTR-231): 304 stainless steel
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Cleanout
  • Product family (M-ATTR-004): Ferrofix
  • Product name (M-ATTR-005): Ferrofix
