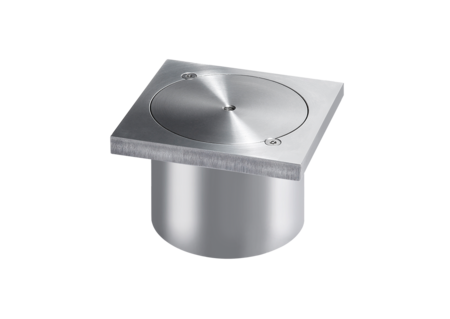

Ferrofix cleanout
Sys 125, Hyg upper section, screwed
The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed cover plate.
- Made of a particularly hygienic and mechanically highly resistant stainless steel
| Item no. | 59013 |
|---|---|
| GTIN | 4026092103470 |
| Price group | 70 |
Ferrofix cleanout Sys 125, Hyg upper section, screwed
The Ferrofix cleanout made of 304 grade stainless steel serves as an upper section for direct connection on pipes. It is equipped with a closed cover plate. Variant System: 125 General characteristics Special feature short text: Dimensions Net weight: 3 kg Gross weight: 3,1 kg Width: 150 mm Height: 100 mm Length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 100 mm Packaging dimension: length: 150 mm Coverage features Type of cover: Hygiene upper section Cover material: Stainless steel 14301 Height of cover: 15 mm Cover locking: screwed Load class: L 15 (EN 1253-1) Tightness: gastight and liquid-tight Rim length: 150 mm Rim material: 150 mm Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Hygiene upper section
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Cover locking (verriegelung): screwed
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck):
