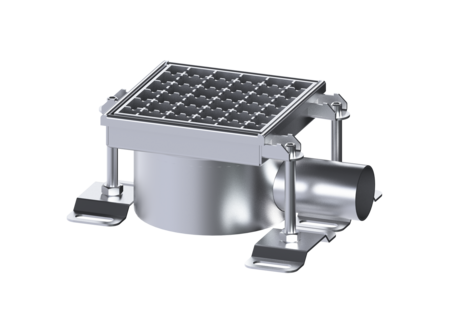

Ferrofix renovation drain
DN 50, horizontal, Slotted grating, L 15
The Ferrofix stainless steel renovation drain is equipped with a horizontal outlet DN 50 as well as a removable odour trap.
- Made of particularly hygienic and mechanically highly resistant stainless steel
- ideal for the food industry
- catering kitchens and swimming pools
| Item no. | 59305 |
|---|---|
| GTIN | 4026092103012 |
| Price group | 70 |
Ferrofix renovation drain DN 50, horizontal, Slotted grating, L 15
The Ferrofix stainless steel renovation drain is equipped with a horizontal outlet DN 50 as well as a removable odour trap. Variant System: 125 Waterproofing layer on the upper section: Connection flange Sealing water height: 50 mm Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Dimensions Net weight: 1 kg Gross weight: 3,1 kg Max. design height: 107 mm Width: 148 mm Height: 107 mm Length: 223 mm Packaging dimension: width: 147 mm Packaging dimension: height: 100 mm Packaging dimension: length: 254 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 System: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Cover locking: unlocked Load class: L 15 (EN 1253-1) Rim length: 148 mm Rim material: 148 mm Upper section material: Stainless steel 14301 Odour trap: included
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data | |
|---|---|
| Test Reports and Certificates |
- Nominal size (DN) (nennweite): 50
- Material of drain body (material_grundkoerper):
Stainless steel 14301
- Cover material (abdeckung_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- System (stutzen_ausfuehrung):
lateral
- Type of cover (abdeckungsart): Slotted cover
- Length (laenge): 223 mm
- Width (breite): 148 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
- (oberflaeche):
