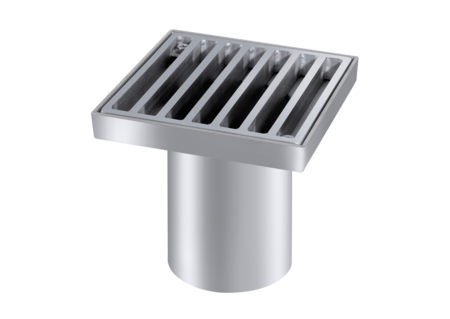

Ferrofix upper section

Sys 125, Ladd grt, Class D

PDF product data sheet

Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage.

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies
Item no. 59400
GTIN 4026092096741
Discount group 3

Ferrofix upper section Sys 125, Ladd grt, Class D
Used in combination with a drain body of the KESSEL modular system 125, the stainless steel upper section is suitable for indoor point drainage. Version: System: 125 Waterproofing layer on the upper section: Connection flange Dimensions: Height: 200 mm Coverage features: Type of cover: Ladder grating Cover material: 304 stainless steel Load class: D 400 (EN 124) Height: 30 mm Locking: screwed Grating: Rim length: 202 mm Rim width: 202 mm Upper section material: 304 stainless steel
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Waterproofing layer on the upper section (ATTR-251): Connection flange
  • Advantages text (M-ATTR-007): The robust solution made of a particularly hygienic and mechanically highly resistant stainless steel - class D
  • Rim length (ATTR-111B): 202  MMT
  • Rim width (ATTR-111C): 202  MMT
  • Type of cover (ATTR-A21): Ladder grating
  • Load class (ATTR-A2B): D 400 (EN 124)
  • Locking (ATTR-A2D): screwed
  • Cover material (ATTR-A2E): 304 stainless steel
  • Height (ATTR-A2P): 30  MMT
  • Height (ATTR-A6C): 200  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 1,264  MMT
  • Packaging dimension: width (ATTR-326): 254  MMT
  • Packaging dimension: height (ATTR-327): 136  MMT
  • Dimensions (ATTR-323): 1264X254X136MM
  • Number of packages (ATTR-321): 0
  • System (ATTR-244): 125
  • Net weight (ATTR-A3A): 0  KGM
  • Gross weight (ATTR-A3B): 0  KGM
  • Upper section material (ATTR-231): 304 stainless steel
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Upper section
  • Product family (M-ATTR-004): Ferrofix
  • Product name (M-ATTR-005): Ferrofix
