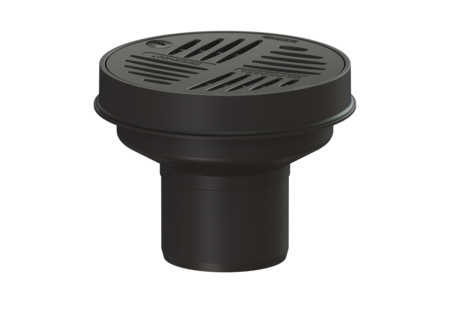

Ecoguss yard drain

System 100, vertical, round, B 125

PDF product data sheet

The Ecoguss yard drain is used for point drainage and is equipped with a sludge bucket. The recyclable composite material, Ecoguss fulfils the highest sound protection requirements, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. The outlet socket is suitable for connection to polymer pipes. Separate equipotential bonding is not necessary.

  • Recyclable
  • Fulfils highest sound protection requirements
  • Temperature-resistant up to 400 degrees Celsius
  • Permanently corrosion-free surface
Item no. 67111B
GTIN 4026092039380
Price group 10

Ecoguss yard drain System 100, vertical, round, B 125
The Ecoguss yard drain is used for point drainage and is equipped with a sludge bucket. The recyclable composite material, Ecoguss fulfils the highest sound protection requirements, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. The outlet socket is suitable for connection to polymer pipes. Separate equipotential bonding is not necessary. Version: System: 100 Odour trap: no General characteristics: Nominal size (DN): 100 Drain body: Socket version: vertical Coverage features: Type of cover: Round slotted cover Cover material: Ecoguss Colour of cover: black Load class: B 125 (EN 124) Length: 247 mm Width: 247 mm Surface: EDM Sludge bucket: yes Locking: Lock & Lift Shape of upper section: round
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Nominal size (DN) (ATTR-118): 100
  • Complete article (ATTR-254): yes
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Shape of upper section (ATTR-259): round
  • Type of drainage (ATTR-260): Point drain
  • Grating/channel shape (ATTR-261): round
  • Type of drainage (ATTR-263): open channel
  • - (ATTR-340):
  • Country of origin (ATTR-322): DE
  • Odour trap (ATTR-115): no
  • Sludge bucket (ATTR-A2K): yes
  • System (ATTR-244): 100
  • Socket version (ATTR-233): vertical
  • Type of cover (ATTR-A21): Round slotted cover
  • Colour of cover (ATTR-A2A): black
  • Load class (ATTR-A2B): B 125 (EN 124)
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): Ecoguss
  • Surface (ATTR-A2F): EDM
  • Length (ATTR-A2M): 247  MMT
  • Width (ATTR-A2N): 247  MMT
  • Net weight (ATTR-A3A): 2.3  KGM
  • Gross weight (ATTR-A3B): 2.7  KGM
  • Wastewater quantity (ATTR-310): High
  • Overall height (ATTR-313): min. 130 mm
  • Temperature class (ATTR-253): A
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Yard drain
  • Product family (M-ATTR-004): Ecoguss
  • Product name (M-ATTR-005): Ecoguss
