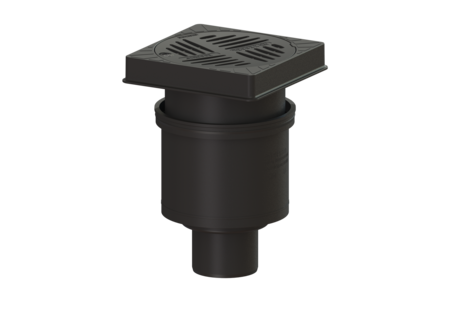

Yard drain

System 200, vert., Slotted grating, B 125

PDF product data sheet

The Ecoguss yard drain is used for point drainage and is equipped with a sludge bucket. The recyclable composite material, Ecoguss fulfils the highest sound protection requirements, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. The outlet socket is suitable for connection to polymer pipes. Separate equipotential bonding is not necessary.

  • Recyclable
  • Fulfils highest sound protection requirements
  • Temperature-resistant up to 400 degrees Celsius
  • Permanently corrosion-free surface
Item no. 67922B
GTIN 4026092038833
Price group 10

Yard drain System 200, vert., Slotted grating, B 125
The Ecoguss yard drain is used for point drainage and is equipped with a sludge bucket. The recyclable composite material, Ecoguss fulfils the highest sound protection requirements, can withstand temperatures up to 400 degrees Celsius and has a permanently corrosion-free surface. The outlet socket is suitable for connection to polymer pipes. Separate equipotential bonding is not necessary. Version: System: 200 Odour trap: no General characteristics: Nominal size (DN): 100 Tank: Number of outlets: 1 ST Drain body: Material of drain body: Polymer Socket version: vertical Vertical adjustment: 40 - 150 mm Coverage features: Type of cover: Round slotted cover Cover material: Ecoguss Colour of cover: black Load class: B 125 (EN 124) Length: 258 mm Width: 258 mm Surface: EDM Sludge bucket: yes Locking: Lock & Lift Grating: Rim length: 258 mm Rim width: 258 mm Rim material: Ecoguss Shape of upper section: square Upper section material: Ecoguss Discharge rate (l/s) with 20 mm backwater: 4.5 l/s
  Title Item no.
  Title Item no.
  Title Item no.
Extension section System 200, Polymer 67500
Extension section System 200, Side inlet DN 100 67600
  Title Item no.
Odour trap Multistop, System 200 48520
Locking key for Ecoguss slotted gratings, Lock & Lift 67007
Drain body, yard/gutter drain DN 100, Vertical outlet 67040
Upper section Class B, Round slotted grating, d: 230 mm 67985
Slotted cover Ecoguss, d: 235 mm, B 125 680216
  • Nominal size (DN) (ATTR-118): 100
  • Complete article (ATTR-254): yes
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Shape of upper section (ATTR-259): square
  • Type of drainage (ATTR-260): Point drain
  • Grating/channel shape (ATTR-261): round
  • Type of drainage (ATTR-263): open channel
  • Declaration of Performance (DOP) (ATTR-292): 009-062
  • - (ATTR-340):
  • Country of origin (ATTR-322): DE
  • Rim material (ATTR-111): Ecoguss
  • Rim length (ATTR-111B): 258  MMT
  • Rim width (ATTR-111C): 258  MMT
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 4.5  LTS
  • Vertical adjustment (ATTR-226_VB): 40  MMT
  • Upper section material (ATTR-231): Ecoguss
  • Type of cover (ATTR-A21): Round slotted cover
  • Colour of cover (ATTR-A2A): black
  • Load class (ATTR-A2B): B 125 (EN 124)
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): Ecoguss
  • Surface (ATTR-A2F): EDM
  • Sludge bucket (ATTR-A2K): yes
  • Length (ATTR-A2M): 258  MMT
  • Width (ATTR-A2N): 258  MMT
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): Polymer
  • Socket version (ATTR-233): vertical
  • Odour trap (ATTR-115): no
  • System (ATTR-244): 200
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 340  MMT
  • Packaging dimension: width (ATTR-326): 340  MMT
  • Packaging dimension: height (ATTR-327): 240  MMT
  • Dimensions (ATTR-323): 340X340X240MM
  • Number of packages (ATTR-321): 0
  • Net weight (ATTR-A3A): 4.5  KGM
  • Gross weight (ATTR-A3B): 4.9  KGM
  • Wastewater quantity (ATTR-310): High
  • Overall height (ATTR-313): min. 130 mm
  • Temperature class (ATTR-253): A
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Yard drain
  • Product family (M-ATTR-004): Ecoguss
  • Product name (M-ATTR-005): Ecoguss
