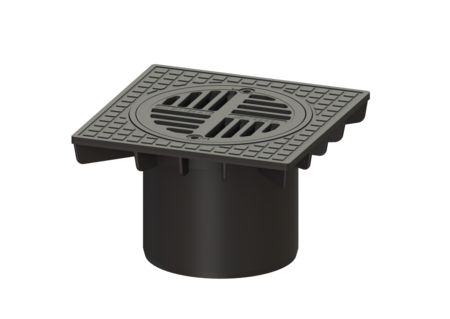

Upper section yard drain

with slotted cover d: 218 mm, A/L15

PDF product data sheet

The upper section with permanently corrosion-free surface is made up of a support frame and a round slotted cover made of polymer and has vertical height adjustment. The slotted cover is equipped with the Lock & Lift system, which serves both as a locking and as a removal device.

  • Multiple combinations with suitable drain bodies
Item no. 67986
GTIN 4026092085493
Price group 10

Upper section yard drain with slotted cover d: 218 mm, A/L15
The upper section with permanently corrosion-free surface is made up of a support frame and a round slotted cover made of polymer and has vertical height adjustment. The slotted cover is equipped with the Lock & Lift system, which serves both as a locking and as a removal device. Version: System: 200 Dimensions: Diameter: 218 mm Vertical adjustment: vertically adjustable upper section Coverage features: Cover material: Polymer Colour of cover: black Load class: A 15 (EN 124) / L 15 (EN 1253-1) Grating: Rim length: 300 mm Rim width: 300 mm Upper section material: Polymer
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Slotted cover round, d: 218 mm, Polymer 27173
Support frame, PVC, cl. A15 27180
Slotted cover round, d: 362 mm, Polymer 850134
  • Upper section material (ATTR-231): Polymer
  • Advantages text (M-ATTR-007): The solution for outdoors that can be walked on and driven on - class A 15 / L 15
  • Rim length (ATTR-111B): 300  MMT
  • Rim width (ATTR-111C): 300  MMT
  • Colour of cover (ATTR-A2A): black
  • Load class (ATTR-A2B): A 15 (EN 124) / L 15 (EN 1253-1)
  • Cover material (ATTR-A2E): Polymer
  • System (ATTR-244): 200
  • Diameter (ATTR-107): 218  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 340  MMT
  • Packaging dimension: width (ATTR-326): 340  MMT
  • Packaging dimension: height (ATTR-327): 215  MMT
  • Dimensions (ATTR-323): 340X340X215
  • Number of packages (ATTR-321): 0
  • Net weight (ATTR-A3A): 4.4  KGM
  • Gross weight (ATTR-A3B): 4.9  KGM
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Upper section, yard/gutter drain
  • Product family (M-ATTR-004): Yard/gutter drain
  • Country of origin (ATTR-322): DE
