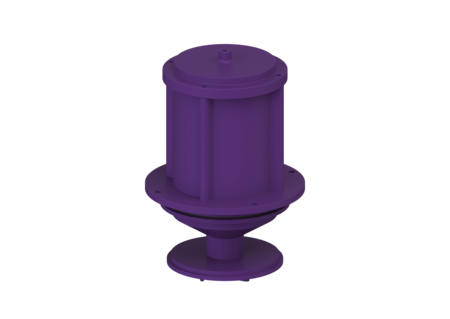

Pump drive SPF 4500

400 V, S1, 10 m cable

Pump drive with multi-vane impeller for faecal wastewater

Item no. 680443
GTIN 4026092072868
Price group 90

    Pump drive SPF 4500 400 V, S1, 10 m cable
    Pump drive with multi-vane impeller for faecal wastewater General characteristics Type of wastewater: with sewage Dimensions Net weight: 32 kg Gross weight: 35,3 kg Packaging dimension: width: 350 mm Packaging dimension: height: 380 mm Packaging dimension: length: 585 mm Pumping device Pump control: SPF 4500 Connection type: Direct connection Rated current: 7,7 A Length of mains cable for pump: 10 m Self-diagnosis system (SDS): I T-DSC: yes Protection class control unit: IP 68 (3m/48h) DSC: controlled via control unit Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 20 m Speed: 2845 U/min Power P1: 4,5 kW Power P2: 3,7 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Control Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection
