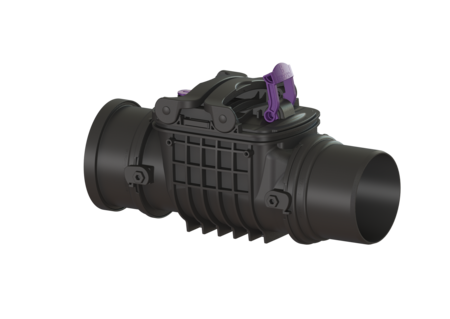

Backwater valve Staufix

DN 150, exposed, Type 1

KESSEL Backwater valve Staufix, wastewater without sewage, nominal size (DN) 150, exposed drainage pipe, type of cover Lockable cover, a mechanical backwater flap, outside diameter (OD) 160 mm

  • Simple conversion to Staufix Type 2 or StaufixControl
  • Flexible installation, various covers available for floor slab installation
  • Simple, toolless maintenance and cleaning
Item no. 720150
GTIN 4026092076088
Price group 10

Backwater valve Staufix DN 150, exposed, Type 1

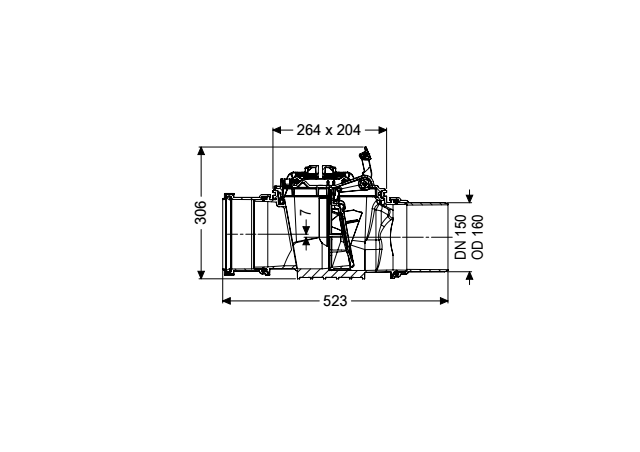

The backwater valve for wastewater without sewage is equipped with one mechanical flap which closes automatically in the event of backwater and also serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second flap or be converted to the StaufixControl backwater valve. Variant Emergency closure: yes Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 150 Outer diameter (OD): 160 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 1 Dimensions Net weight: 3,2 kg Gross weight: 3,97 kg Vertical drop between inlet and outlet: 8 mm Length: 523 mm Width: 216 mm Height: 306 mm Packaging dimension: length: 524 mm Packaging dimension: width: 222 mm Packaging dimension: height: 265 mm Coverage features Type of cover: Lockable cover Cover locking: One-handed closure
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Battery 3 V for control unit 680665 Show
Seal Cover seal for Staufix, DN 125-200 686113 Show
Staufix test funnel with seal 70214 Show
Polymer backwater flap Ø 125/160 70232 Show
Slide-in flap housing DN 125/150, with seal 70242 Show
Lockable cover, DN125-200, emergency clo 72230 Show
Spigot DN 150, with seal 83083 Show
Socket DN 150, with seal 83087 Show
  • Nominal size (DN) (nennweite): 150
  • TÜV test mark (pruefzeichen): ID 1111242698
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Length (laenge): 523  mm
  • Width (breite): 216  mm
  • Backwater protection (rueckstauschutz): Type 1
