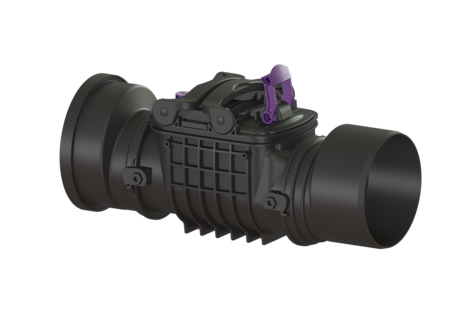

Backwater valve Staufix

DN 200, exposed, Type 1

PDF product data sheet

The backwater valve for wastewater without sewage is equipped with one mechanical flap which closes automatically in the event of backwater and also serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second flap or be converted to the StaufixControl backwater valve.

  • Simple conversion to Staufix Type 2 or StaufixControl
  • Flexible installation, various covers available for floor slab installation
  • Simple, toolless maintenance and cleaning
Item no. 720200
GTIN 4026092076118
Discount group 1

Backwater valve Staufix DN 200, exposed, Type 1
The backwater valve for wastewater without sewage is equipped with one mechanical flap which closes automatically in the event of backwater and also serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second flap or be converted to the StaufixControl backwater valve. Version: Emergency closure: yes Delivery state: installation-ready Installation situation: exposed drainage pipe Type of wastewater: wastewater without sewage Backwater protection: Type 1 Number of mechanical backwater flaps: 1 General characteristics: Nominal size (DN): 200 Outer diameter (OD): 200 Note on nominal size: Hydraulics correspond to DN 150 Colour: black Standard: EN 13564 Dimensions: Length: 586 mm Width: 233 mm Height: 306 mm Coverage features: Type of cover: Lockable cover Vertical drop between inlet and outlet: 8 mm Cover locking: One-handed closure
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
KESSEL Battery 3 V for control unit 680665
Staufix cover seal 686113
Staufix test funnel with seal 70214
Polymer backwater flap Ø 125/160 70232
Flap housing with gasket Ø 125/160 70242
Lockable cover, DN125-200, emergency clo 72230
Staufix Premium Spigot DN 200 83084
Staufix Premium Socket DN 200 83088
  • Backwater protection (ATTR-151): Type 1
  • Installation situation (ATTR-1): exposed drainage pipe
  • Country of origin (ATTR-322): DE
  • Cover locking (ATTR-117): One-handed closure
  • Nominal size (DN) (ATTR-118): 200
  • Note on nominal size (ATTR-118B): Hydraulics correspond to DN 150
  • Outer diameter (OD) (ATTR-147): 200
  • Delivery state (ATTR-189): installation-ready
  • Length (ATTR-A6A): 586  MMT
  • Width (ATTR-A6B): 233  MMT
  • Height (ATTR-A6C): 306  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 524  MMT
  • Packaging dimension: width (ATTR-326): 222  MMT
  • Packaging dimension: height (ATTR-327): 265  MMT
  • Dimensions (ATTR-323): 524X222X265MM
  • Number of packages (ATTR-321): 0
  • Type of cover (ATTR-A21): Lockable cover
  • Emergency closure (ATTR-153): yes
  • Net weight (ATTR-A3A): 3.7  KGM
  • Gross weight (ATTR-A3B): 6.3  KGM
  • Standard (ATTR-9): EN 13564
  • CE marking (ATTR-A5B): yes
  • Number of mechanical backwater flaps (ATTR-154): 1
  • External monitoring (ATTR-A8): LGA
  • Declaration of Performance (DOP) (ATTR-292): 009-008
  • Protection strategy (ATTR-311): Central protection
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Position relative to sewer (ATTR-309): Gradient to the sewer
  • Function in the event of backwater (ATTR-312): Protects in the event of backwater
  • Colour (ATTR-102): black
  • Note on type of wastewater (ATTR-187): Country-specific regulations related to the area of application can deviate
  • Vertical drop between inlet and outlet (ATTR-176): 8  MMT
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Backwater valves
  • Product type (M-ATTR-003): Backwater valve
  • Product family (M-ATTR-004): Staufix
  • Product name (M-ATTR-005): Staufix
