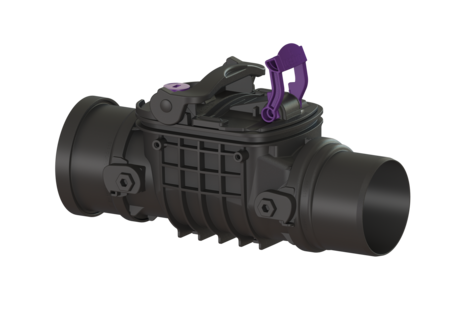

Backwater valve Staufix
DN 100, exposed, Type 2 R
PDF product data sheet
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve.
- Optional rat protection flap for additional safety
- Flexible installation, various covers available for floor slab installation
- Alternatively available as a module set
| Item no. | 730100R |
|---|---|
| GTIN | 4026092076408 |
| Price group | 10 |
Backwater valve Staufix DN 100, exposed, Type 2 R
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve. Type of wastewater: wastewater without sewage Installation situation: exposed drainage pipe Version: Stainless steel flap as rat protection: yes Emergency closure: yes Delivery state: installation-ready Backwater protection: Type 2 Number of mechanical backwater flaps: 2 General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Colour: black Standard: EN 13564 Dimensions: Length: 389 mm Width: 167 mm Height: 230 mm Coverage features: Type of cover: Lockable cover Vertical drop between inlet and outlet: 8 mm Cover locking: One-handed closure
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
|
Battery 3 V for control unit | 680665 | |
|
Seal Cover seal for Staufix DN 90-110 | 686112 | |
|
Staufix test funnel with seal | 70214 | |
|
Polymer backwater flap Ø 100/110 | 70231 | |
|
Backwater flap, DN100, f. Staufix/Contro | 70233 | |
|
Flap housing with gasket Ø 100/110 | 70241 | |
|
Lockable cover, DN90-100, emergency clos | 72229 | |
|
Spigot DN 100 | 830100 | |
|
Socket DN 100 | 830101 |
| Catalog Page | |
|---|---|
| Manuals | |
| CAD Data | |
| Declaration of Performance |
- Backwater protection (ATTR-151): Type 2
- Installation situation (ATTR-1):
exposed drainage pipe
- Country of origin (ATTR-322): DE
- Cover locking (ATTR-117): One-handed closure
- Nominal size (DN) (ATTR-118):
100
- Outer diameter (OD) (ATTR-147): 110
- Delivery state (ATTR-189): installation-ready
- Length (ATTR-A6A): 389 MMT
- Width (ATTR-A6B): 167 MMT
- Height (ATTR-A6C): 230 MMT
- Volume (ATTR-320): 0.0 MTQ
- Packaging dimension: length (ATTR-325): 386 MMT
- Packaging dimension: width (ATTR-326): 163 MMT
- Packaging dimension: height (ATTR-327): 198 MMT
- Dimensions (ATTR-323): 386X163X198MM
- Number of packages (ATTR-321): 1
- Type of cover (ATTR-A21): Lockable cover
- Emergency closure (ATTR-153): yes
- Stainless steel flap as rat protection (ATTR-155): yes
- Net weight (ATTR-A3A): 1.4 KGM
- Gross weight (ATTR-A3B): 4 KGM
- Standard (ATTR-9): EN 13564
- CE marking (ATTR-A5B):
yes
- Number of mechanical backwater flaps (ATTR-154): 2
- External monitoring (ATTR-A8): LGA
- Declaration of Performance (DOP) (ATTR-292): 009-009
- Protection strategy (ATTR-311):
Central protection
- Type of wastewater (ATTR-6):
wastewater without sewage
- Position relative to sewer (ATTR-309):
Gradient to the sewer
- Function in the event of backwater (ATTR-312):
Protects in the event of backwater
- Colour (ATTR-102): black
- Note on type of wastewater (ATTR-187): Country-specific regulations related to the area of application can deviate
- Vertical drop between inlet and outlet (ATTR-176): 8 MMT
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Backwater valves
- Product type (M-ATTR-003): Backwater valve
- Product family (M-ATTR-004): Staufix
- Product name (M-ATTR-005): Staufix
