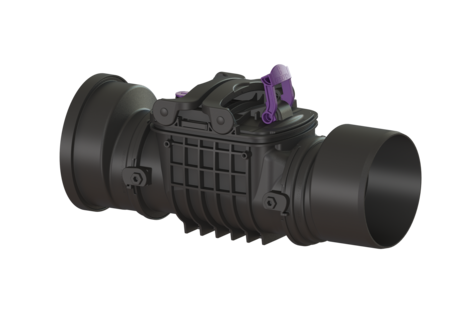

Backwater valve Staufix

DN 200, exposed, Type 2 R

PDF product data sheet

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve.

  • Optional rat protection flap for additional safety
  • Flexible installation, various covers available for floor slab installation
  • Alternatively available as a module set
Item no. 730200R
GTIN 4026092076187
Discount group 1

Backwater valve Staufix DN 200, exposed, Type 2 R
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve. Version: Stainless steel flap as rat protection: yes Emergency closure: yes Delivery state: installation-ready Installation situation: exposed drainage pipe Type of wastewater: wastewater without sewage Backwater protection: Type 2 Number of mechanical backwater flaps: 2 General characteristics: Nominal size (DN): 200 Outer diameter (OD): 200 Note on nominal size: Hydraulics correspond to DN 150 Colour: black Standard: EN 13564 Dimensions: Length: 586 mm Width: 233 mm Height: 306 mm Coverage features: Type of cover: Lockable cover Vertical drop between inlet and outlet: 8 mm Cover locking: One-handed closure
  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator for optical/acoustic. signal in the event of backwater 72222
Radio receiver as switched socket 72223
StaufixContr. lockable cover DN 90-100 72224
StaufixContr. lockable cover DN125-200 72225
  Title Item no.
KESSEL Battery 3 V for control unit 680665
Staufix cover seal 686113
Staufix test funnel with seal 70214
Polymer backwater flap Ø 125/160 70232
Backwater fl, DN125/150, Staufix/Control 70234
Flap housing with gasket Ø 125/160 70242
Lockable cover, DN125-200, emergency clo 72230
Staufix Premium Spigot DN 200 83084
Staufix Premium Socket DN 200 83088
  • Backwater protection (ATTR-151): Type 2
  • Installation situation (ATTR-1): exposed drainage pipe
  • Country of origin (ATTR-322): DE
  • Cover locking (ATTR-117): One-handed closure
  • Nominal size (DN) (ATTR-118): 200
  • Note on nominal size (ATTR-118B): Hydraulics correspond to DN 150
  • Outer diameter (OD) (ATTR-147): 200
  • Delivery state (ATTR-189): installation-ready
  • Length (ATTR-A6A): 586  MMT
  • Width (ATTR-A6B): 233  MMT
  • Height (ATTR-A6C): 306  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 524  MMT
  • Packaging dimension: width (ATTR-326): 222  MMT
  • Packaging dimension: height (ATTR-327): 265  MMT
  • Dimensions (ATTR-323): 524X222X265MM
  • Number of packages (ATTR-321): 0
  • Type of cover (ATTR-A21): Lockable cover
  • Emergency closure (ATTR-153): yes
  • Stainless steel flap as rat protection (ATTR-155): yes
  • Net weight (ATTR-A3A): 3.8  KGM
  • Gross weight (ATTR-A3B): 6.4  KGM
  • Standard (ATTR-9): EN 13564
  • CE marking (ATTR-A5B): yes
  • Number of mechanical backwater flaps (ATTR-154): 2
  • External monitoring (ATTR-A8): LGA
  • Declaration of Performance (DOP) (ATTR-292): 009-009
  • Protection strategy (ATTR-311): Central protection
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Position relative to sewer (ATTR-309): Gradient to the sewer
  • Function in the event of backwater (ATTR-312): Protects in the event of backwater
  • Colour (ATTR-102): black
  • Note on type of wastewater (ATTR-187): Country-specific regulations related to the area of application can deviate
  • Vertical drop between inlet and outlet (ATTR-176): 8  MMT
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Backwater valves
  • Product type (M-ATTR-003): Backwater valve
  • Product family (M-ATTR-004): Staufix
  • Product name (M-ATTR-005): Staufix
