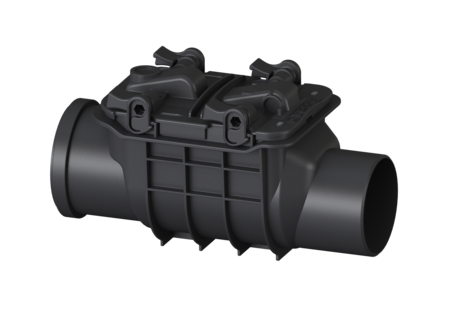

Backwater valve Staufix Basic
OD 100, Type 0, w/o emergency closure
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand.
- Optional rat protection flap for additional safety
- Fast and toolless maintenance and cleaning
- Ideal for modernisation, can also be installed in existing pipes later
| Item no. | 76100 |
|---|---|
| GTIN | 4026092011300 |
| Price group | 10 |
Backwater valve Staufix Basic OD 100, Type 0, w/o emergency closure
The backwater valve for rainwater is equipped with a mechanical flap which closes automatically in the event of backwater. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second backwater flap or an emergency closure. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 100 mm Type of wastewater: Rainwater Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 0 Dimensions Net weight: 1,2 kg Gross weight: 1,2 kg Vertical drop between inlet and outlet: 9 mm Width: 155 mm Height: 170 mm Length: 355 mm Packaging dimension: width: 164 mm Packaging dimension: height: 365 mm Packaging dimension: length: 210 mm Coverage features Adjustment range: screwed
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 100
- Installation situation (einbausituation):
exposed drainage pipe
- CE marking (ce_kennzeichnung):
yes
- Backwater protection (rueckstauschutz): Type 0
- Mechanical backwater flaps (mechanische_rueckstauklappen): 1
- (notverschluss):
