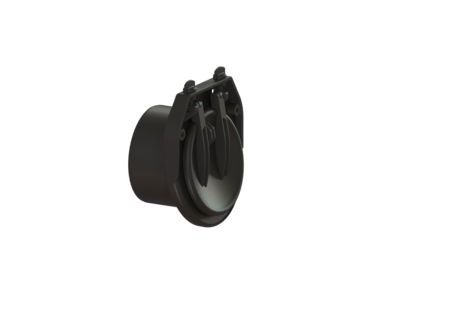

Pipe flap valve
DN 250
The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically.
- For universal use in salt and fresh water environments
- Low weight for simple installation with high mechanical strength
- High tightness: seals airtight even with low counter-pressure
| Item no. | 79250 |
|---|---|
| GTIN | 4026092011645 |
| Price group | 10 |
Pipe flap valve DN 250

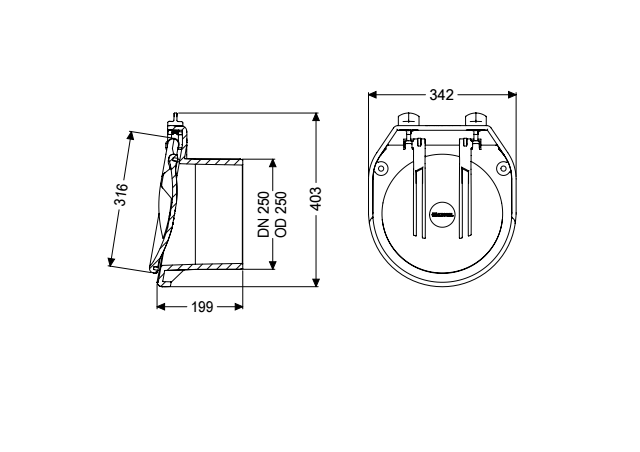

The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Material: Polymer Nominal size (DN): 250 Outer diameter (OD): 263 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 4,53 kg Gross weight: 5,17 kg Width: 345 mm Height: 400 mm Length: 220 mm Packaging dimension: width: 360 mm Packaging dimension: height: 220 mm Packaging dimension: length: 420 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates |
- Nominal size (DN) (nennweite): 250
- Material (material):
Polymer
- Installation situation (einbausituation):
exposed drainage pipe
- Type of wastewater (abwasserart_de):
without sewage
- Length (laenge): 220 mm
- Width (breite): 345 mm
- Mechanical backwater flaps (mechanische_rueckstauklappen): 1
