Pipe flap valve

DN 800

PDF product data sheet

The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically.

  • For universal use in salt and fresh water environments
  • Low weight for simple installation with high mechanical strength
  • High tightness: seals airtight even with low counter-pressure
Item no. 79800
GTIN 4026092054994
Price group 10
Back to table of variants

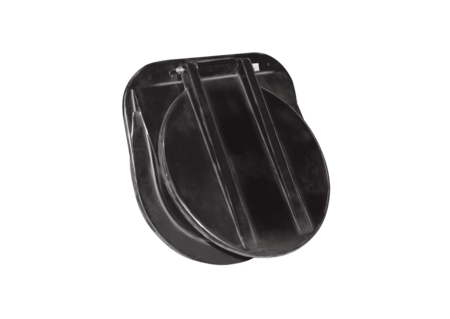

Pipe flap valve DN 800
The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically. Type of wastewater: wastewater without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Number of mechanical backwater flaps: 1 General characteristics: Nominal size (DN): 800 Outer diameter (OD): 800 Colour: black Dimensions: Length: 523 mm Width: 1,035 mm Height: 1,125 mm
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Country of origin (ATTR-322): FR
  • Nominal size (DN) (ATTR-118): 800
  • Outer diameter (OD) (ATTR-147): 800
  • Net weight (ATTR-A3A): 55  KGM
  • Gross weight (ATTR-A3B): 55  KGM
  • Length (ATTR-A6A): 523  MMT
  • Width (ATTR-A6B): 1,035  MMT
  • Height (ATTR-A6C): 1,125  MMT
  • Volume (ATTR-320): 0.7  MTQ
  • Packaging dimension: length (ATTR-325): 1,300  MMT
  • Packaging dimension: width (ATTR-326): 1,050  MMT
  • Packaging dimension: height (ATTR-327): 500  MMT
  • Dimensions (ATTR-323): 1300X1050X500MM
  • Number of packages (ATTR-321): 1
  • Colour (ATTR-102): black
  • Installation situation (ATTR-1): exposed drainage pipe
  • Number of mechanical backwater flaps (ATTR-154): 1
  • Delivery state (ATTR-189): installation-ready
  • Protection strategy (ATTR-311): Individual protection
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Function in the event of backwater (ATTR-312): Protects in the event of backwater
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Backwater valves
  • Product type (M-ATTR-003): Pipe flap valve
  • Product family (M-ATTR-004): Pipe flap valve
