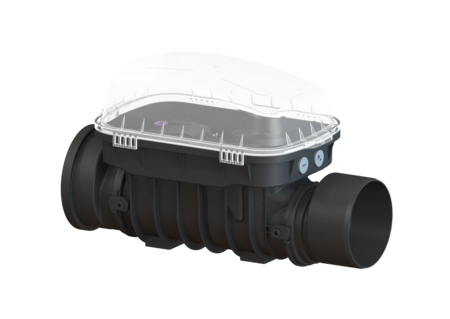

Controlfix clean out

DN 200, exposed

The Premium clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station.

  • Simple conversion to Staufix SWA
  • Fast, simple and toolless maintenance
  • Quick and toolless access for cleaning
Item no. 80200
GTIN 4026092046623
Price group 30

    Controlfix clean out DN 200, exposed
    The Premium clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station. General characteristics Colour: black Nominal size (DN): 200 Outer diameter (OD): 200 mm Note on nominal size: Hydraulics correspond to DN 150 Type of wastewater: for wastewater with and without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 6 kg Gross weight: 11,5 kg Vertical drop between inlet and outlet: 9 mm Width: 350 mm Height: 422 mm Length: 486 mm Packaging dimension: width: 350 mm Packaging dimension: height: 421,7 mm Packaging dimension: length: 720,5 mm Tank/drain body System: including spigot and socket Coverage features Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Width of cover: 350 mm Height of cover: 165 mm Length of cover: 542 mm Cover locking: Clip closure
      Title Item no.
      Title Item no.
      Title Item no.
    Staufix FKA conversion kit DN 100-200, fr. 01/2011, 5 m cable 80093 Show
    Pumpfix F conversion kit DN 100-200, fr. 01/2011, exposed 80097 Show
    Cable prolongation set for pump 10 m 80891 Show
      Title Item no.
    • Nominal size (DN) (nennweite): 200
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): for wastewater with and without sewage
    • Length (laenge): 486  mm
    • Width (breite): 350  mm
