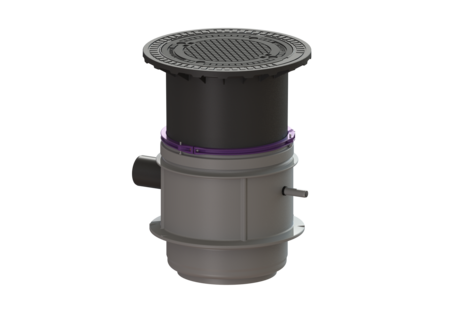

Pumping station Aquapump Medium

Tronic, STZ 1000, 800-1250 mm, D

The pumping station with sewage wastewater is suitable for underground installation and is equipped with a non-return flap for the pressure pipe. The PE-LLD tank is resistant to aggressive media and can be delivered with load class A, B or D covers. The pump with macerator ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for ventilation and cable duct.

  • height-adjustable upper section
  • Preconfigured in the factory
  • LW 600 chamber system suitable for underground installation
Item no. 827711D
GTIN 4026092052112
Price group 60

Pumping station Aquapump Medium Tronic, STZ 1000, 800-1250 mm, D
The pumping station with sewage wastewater is suitable for underground installation and is equipped with a non-return flap for the pressure pipe. The PE-LLD tank is resistant to aggressive media and can be delivered with load class A, B or D covers. The pump with macerator ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for ventilation and cable duct. Variant Type of system: Single unit Passage seal for conduit pipe (DN): 100 Access steps: no Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Rim width: Control unit Backwater protection: integrated Pressure pipe connection: horizontal Sound absorption mat: LW 600 General characteristics Standard: EN 12050-1 Type of wastewater: for wastewater with and without sewage Installation situation: underground installation System type: Tronic Dimensions Net weight: 127 kg Gross weight: 139 kg Groundwater resistant from lower edge of base section: 2500 mm Diameter: 809 mm Clear width (LW): 600 mm Installation depth: 800 - 1250 mm Width: 806 mm Length: 1000 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1220 mm Packaging dimension: length: 1200 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 100 Venting connection (DN): 100 Distance from centre of outlet pipe to tank bottom: 482 mm Distance pipe bottom inlet to tank bottom: 400 mm Distance from centre of inlet pipe to tank bottom: 475 mm Inlet nominal size (DN): 150 Inlet type: 1 Clear width of tank (LW): 600 mm Pumping volume: 30 l Coverage features Type of cover: Round cover plate Cover material: Grey iron with concrete filling Load class: D 400 (EN 124) Pumping device Pump control: STZ 1000 Number of pumps: 1 Weight: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 5,2 A Length of mains cable for pump: 10 m Self-diagnosis system (SDS): I Insulation class: F Protection class control unit: IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Impeller type: Macerator Control Motor protection switch: yes Alarm sensor: optical probe Level measurement instrument: Submersible pressure switch Type of level measurement: pneumatic Protection class probe: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Max. permissible switching frequency: Comfort Control unit function: With alarm message Warning equipment version: acoustic and optical signal
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): for wastewater with and without sewage
  • Max. permissible switching frequency (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): underground installation
  • Load class (belastungsklasse): D 400 (EN 124)
  • Pump control (pumpe): STZ 1000
  • Installation depth (einbautiefe): 800  mm
  • Impeller type (laufrad_typ): Macerator
  • Inlet nominal size (DN) (zulauf_nennweite_dn): 150
