Pumping station Aquapump Medium
Tronic, GTF 1200, 1300-1750 mm, D
The pumping station for faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank is an LW 600 chamber system made of permanently resistant polymer (PE-LLD) with open pump tank and universal connection options. Quick-release closures enable the integrated components to be removed easily. The station is optionally controlled by a user-friendly control unit, which can be integrated in the building management system via a potential-free contact. Alternatively, alarm and collective fault messages can be output via a GSM interface.
- Maximum safety
- Flexible installation
- LW 600 chamber system suitable for underground installation
| Item no. | 827821D |
|---|---|
| GTIN | 4026092045763 |
| Price group | 60 |
Pumping station Aquapump Medium Tronic, GTF 1200, 1300-1750 mm, D
The pumping station for faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank is an LW 600 chamber system made of permanently resistant polymer (PE-LLD) with open pump tank and universal connection options. Quick-release closures enable the integrated components to be removed easily. The station is optionally controlled by a user-friendly control unit, which can be integrated in the building management system via a potential-free contact. Alternatively, alarm and collective fault messages can be output via a GSM interface. Type of wastewater: wastewater without sewage Installation situation: underground installation Version: Type of system: Single station Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Passage seal for ventilation pipe (DN): 100 mm Passage seal for conduit pipe (DN): 100 mm Delivery state: Modular set for assembly on site General characteristics: Colour: grey Standard: EN 12050-2 Dimensions: Length: 806 mm Width: 806 mm Tank: Number of inlets: 1 ST Inlet nominal size (DN): 150 Inlet nominal size (OD): 160 mm Distance pipe bottom inlet to tank bottom: 400 mm Distance from centre of outlet pipe to tank bottom: 894 mm Distance from centre of inlet pipe to tank bottom: 455 mm Connection conduit pipe (DN): 100 mm Pressure pipe connection: horizontal Pressure pipe connection (DN): 32 mm Pressure pipe connection (OD): 40 mm Installation depth: 1,300 - 1,750 mm Venting connection (DN): 100 mm Groundwater resistant from lower edge of base section: 2,000 mm Clear width of tank (LW): 600 mm Clear width of entry (LW): 600 mm Chamber system: LW 600 Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: Round cover plate Cover material: Grey iron with concrete filling Colour of cover: black Load class: D 400 (EN 124) Length: 680 mm Width: 680 mm Height: 50 mm Locking: unlocked Pumping device: Pump: GTF 1200 Number of pumps: 1 Max. pumping capacity: 15.5 m3/h Max. pumping height: 9 m Operating mode: S1 Power P1: 1.4 kW Power P2: 0.84 kW Speed: 2,650 U/min Max. temperature (permanent) of conveyed material: 40 °C Connection type: coded plug Weight: 10 kg Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Rated current: 6.2 A Protection class (pump): IP 68 (3m) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated Cos phi - power factor: 0.98 Insulation class: F Control: Control unit: Comfort Operating voltage: 230 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes USB interface: yes GSM interface: yes Potential-free contact: optional Type of fuse required (electrical protection): C 16 A Protection class control unit: IP 54 Length of mains cable for control unit: 1.4 m Type of level measurement: pneumatic Level measurement instrument: Submersible pressure switch Alarm sensor: optical probe
Video
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Splash guard set for optical probe | 28706 | Show |
 | Control Unit Aqualift Comfort 230 V Mono | 28731 | Show |
 | One-handed closure for backflow preventer | 680018 | Show |
 | Battery 9 V block | 680034 | Show |
 | Cover plate Class D, grey cast iron | 680059 | Show |
 | Seal for pressure pipe connection | 680067 | Show |
 | Pressure hose Sold by the metre, 6x4 mm 100 | 680071 | Show |
 | Submersible pressure switch without hose | 680108 | Show |
 | Clamping ring for upper sections d: 600 mm | 680276 | Show |
 | Pump stand for pumping stations | 680362 | Show |
 | Spiral housing for passage 30 mm | 680363 | Show |
 | Impeller for passage 30 mm | 680366 | Show |
 | Riser 1300 - 1750 mm | 680450 | Show |
 | Backflow preventer with non-return flap | 680457 | Show |
 | Pump connection for pumping stations, from 01/2016 | 680476 | Show |
 | Pump connection Mono, suitable for pumping stations | 680479 | Show |
 | Seal set Non-return flap, seals | 680490 | Show |
 | Replacement pump Aquadive GTF1200 without float switch, 10 m | 680595 | Show |
 | Sensor clamp for level sensor & subm. press. switch | 680729 | Show |
 | Adapter set optical probe | 80892 | Show |
 | Optical probe with 3 adap. 15 m | 80988 | Show |
 | Seal for channel passage 110 mm | 850117 | Show |
 | Seal for upper section | 860116 | Show |
| Catalog Page | |
|---|---|
| Manuals | |
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity | |
| BIM Data |
- TÜV test mark (ATTR-376):
ID 1111241937
- Country of origin (ATTR-322): DE
- Area of application (ATTR-264): drainage
- Pump type (ATTR-265): submersible pump
- Pump shaft position (ATTR-266): vertical
- Pump design (ATTR-267): Dry rotor pump
- Pump hydraulics (ATTR-268): single stage
- Pump suction characteristic (ATTR-269): non-self-priming
- Pump drive (ATTR-270): E-motor for alternating current
- E-motor, type of startup (ATTR-271): direct
- Pump casing material (ATTR-272): Polymer
- Upper tolerance of the operating voltage (+) (ATTR-273): 10 PROZ
- Lower tolerance of the operating voltage (-) (ATTR-274): 10 PROZ
- Upper tolerance of the nominal frequency (+) (ATTR-275): 3 PROZ
- Lower tolerance of the nominal frequency (-) (ATTR-276): 2 PROZ
- Pump electrical connection (ATTR-277): 1/N/PE 230V
- Motor pump shaft (ATTR-279): continuous
- Shaft seal (ATTR-280): RSSR
- Number of operating pumps (ATTR-281): 1
- Minimum pumped media temperature (ATTR-282): 0 CEL
- Maximum operating pressure (Pmax) (ATTR-283): 900 HPA
- Minimum speed for speed adjustment (ATTR-284): no speed adjustment
- Start-up current (ATTR-285): 14.9 AMP
- Vertical installation (ATTR-286): yes
- Pump (ATTR-4): GTF 1200
- Number of pumps (ATTR-181): 1
- Impeller type (ATTR-8): Multi-vane impeller
- Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
- Max. permissible switching frequency (ATTR-162): 20 1PH
- Operating mode (ATTR-10): S1
- Power P1 (ATTR-F4): 1.4 KWT
- Power P2 (ATTR-F5): 0.8 KWT
- Speed (ATTR-F2): 2,650 UMIN
- Rated current (ATTR-N5): 6.2 AMP
- Max. pumping capacity (ATTR-F7): 15.5 MQH
- Max. pumping height (ATTR-F8): 9 MTR
- Max. temperature (permanent) of conveyed material (ATTR-132): 40 CEL
- Protection class (ATTR-133): I
- Connection type (ATTR-N1): coded plug
- Protection class (pump) (ATTR-125): IP 68 (3m)
- Length of mains cable for pump (ATTR-11): 10 MTR
- Temperature monitoring (ATTR-135): integrated
- Weight (ATTR-191): 10 KGM
- Cos phi - power factor (ATTR-192): 1.0
- Insulation class (ATTR-193): F
- Expected service life (hours of operation) (ATTR-194): 5,000 HUR
- Expected service life (number of switching cycles) (ATTR-195): 150,000
- Net weight (ATTR-A3A): 155 KGM
- Gross weight (ATTR-A3B): 167 KGM

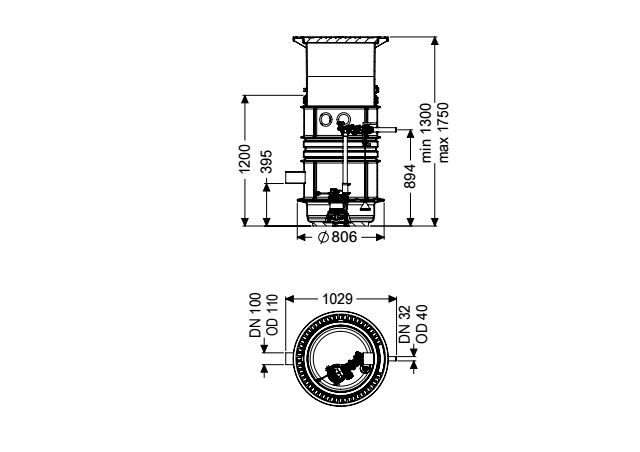

- Installation depth (ATTR-B2_VB): 1,300 MMT
- Length (ATTR-A6A): 806 MMT
- Width (ATTR-A6B): 806 MMT
- Volume (ATTR-320): 1.7 MTQ
- Packaging dimension: length (ATTR-325): 1,200 MMT
- Packaging dimension: width (ATTR-326): 800 MMT
- Packaging dimension: height (ATTR-327): 1,720 MMT
- Dimensions (ATTR-323): 1200X800X1720MM
- Number of packages (ATTR-321): 1
- Pressure pipe connection (ATTR-B7): horizontal
- Chamber system (ATTR-B8): LW 600
- Type of system (ATTR-2): Single station
- Installation (ATTR-164): Wet installation
- Backflow preventer (ATTR-165): integrated
- Pump control (ATTR-134): Control unit
- Passage seal for ventilation pipe (DN) (ATTR-183): 100 MMT
- Passage seal for conduit pipe (DN) (ATTR-184): 100 MMT
- Control unit (ATTR-S2):
Comfort
- Self-diagnosis system (SDS) (ATTR-S5): yes
- Battery buffering (ATTR-S6): yes
- Multi-line display (ATTR-S7): yes
- Log book function (ATTR-S8): yes
- USB interface (ATTR-S9): yes
- GSM interface (ATTR-S10): yes
- Potential-free contact (ATTR-S11): optional
- Length of mains cable for control unit (ATTR-S12): 1.4 MTR
- Operating voltage (ATTR-S13): 230 VLT
- Mains frequency (ATTR-S14): 50 HTZ
- Protection class control unit (ATTR-S4): IP 54
- Alarm sensor (ATTR-S1): optical probe
- Type of level measurement (ATTR-7A): pneumatic
- Level measurement instrument (ATTR-7B): Submersible pressure switch
- Type of fuse required (electrical protection) (ATTR-S17): C 16 A
- Type of cover (ATTR-A21): Round cover plate
- Colour of cover (ATTR-A2A): black
- Load class (ATTR-A2B): D 400 (EN 124)
- Locking (ATTR-A2D): unlocked
- Cover material (ATTR-A2E): Grey iron with concrete filling
- Length (ATTR-A2M): 680 MMT
- Width (ATTR-A2N): 680 MMT
- Height (ATTR-A2P): 50 MMT
- Clear width of entry (LW) (ATTR-B13): 600 MMT
- Clear width of tank (LW) (ATTR-B14): 600 MMT
- Number of inlets (ATTR-B1B): 1 PCE
- Inlet nominal size (DN) (ATTR-B1CA): 150
- Inlet nominal size (OD) (ATTR-B1CB): 160 MMT
- Distance from centre of inlet pipe to tank bottom (ATTR-B6): 455 MMT
- Distance pipe bottom inlet to tank bottom (ATTR-B1D): 400 MMT
- Distance from centre of outlet pipe to tank bottom (ATTR-B15E): 894 MMT
- Connection conduit pipe (DN) (ATTR-B3): 100 MMT
- Venting connection (DN) (ATTR-B4): 100 MMT
- Pressure pipe connection (DN) (ATTR-B17): 32 MMT
- Pressure pipe connection (OD) (ATTR-B18): 40 MMT
- Groundwater resistant from lower edge of base section (ATTR-B12): 2,000 MMT
- Vertical adjustment (ATTR-177): vertically adjustable upper section
- Declaration of Performance (DOP) (ATTR-292): 009-072
- Installation situation (ATTR-1):
underground installation
- Wastewater quantity (ATTR-310):
Medium
- Type of wastewater (ATTR-6):
wastewater without sewage
- Colour (ATTR-102): grey
- Standard (ATTR-9): EN 12050-2
- CE marking (ATTR-A5B):
yes
- Delivery state (ATTR-189): Modular set for assembly on site
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Lifting stations
- Product type (M-ATTR-003): Pumping station
- Product family (M-ATTR-004): Aqualift
- Product name (M-ATTR-005): Aqualift S
