Pumping station Aqualift S Basic
Duo, GTF 1250
PDF product data sheet
The pumping station for faecal wastewater is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for inlet. - tank made of PE, resistant to domestic wastewater - with a pedestrian class cover plate made of polymer - including backflow preventer for the pressure pipe - including openings for inlet, ventilation and cable duct - pump/s with multi-vane impeller for maximum operating reliability
- Including backflow preventer for the pressure pipe
- Including openings for inlet, ventilation and cable duct
- With pedestrian class polymer cover plate
| Item no. | 828851 |
|---|---|
| GTIN | 4026092093009 |
| Discount group | 5 |
Pumping station Aqualift S Basic Duo, GTF 1250
The pumping station for faecal wastewater is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for inlet. - tank made of PE, resistant to domestic wastewater - with a pedestrian class cover plate made of polymer - including backflow preventer for the pressure pipe - including openings for inlet, ventilation and cable duct - pump/s with multi-vane impeller for maximum operating reliability Version: Type of system: Twin pump station Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Installation situation: underground installation Type of wastewater: wastewater without sewage General characteristics: Colour: black Standard: EN 12050-2 Dimensions: Length: 590 mm Width: 590 mm Height: 830 mm Tank: Inlet max. scoring (DN): 100 mm Pressure pipe connection (DN): 50 mm Pressure pipe connection (OD): 63 mm Installation depth: 830 mm Pumping volume: 60 l Coverage features: Type of cover: Round cover plate Colour of cover: black Length: 615 mm Width: 600 mm Locking: lockable Free passage: 30 mm Pumping device: Number of pumps: 2 Max. pumping capacity: 20 m3/h Max. pumping height: 11 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S3 - 50 % Power P1: 1.3 kW Power P2: 0.8 kW Speed: 2,700 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: coded plug Weight: 10 kg Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Rated current: 5.4 A Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated null: 260 mm null: 160 mm Insulation class: F Control: Control unit: Basic Operating voltage: 230 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Potential-free contact: optional Motor protection switch: yes Protection class control unit: IP 54 Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1.45 m Type of level measurement: mechanical Alarm sensor: Float switch
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
|
Plug | 680018 | |
|
Joint | 680067 | |
|
Joint for intermediate part | 680150 | |
|
Pump connection with seal and flap | 680475 | |
|
Pump connection Minilift, Aqualift S | 680760 | |
|
Turn fastener for pump connection lock | 680762 | |
|
Flap housing Duo, with pump connector | 680781 | |
|
Cover plate round, incl. screws and seal | 680801 | |
|
Pressure pipe DN 32 for Aqualift S Basic GTF 1250 | 680962 | |
|
Replacement pump GTF 1250 Aqualift S Basic, 10 m | 680966 | |
|
Float unit for Aqualift S Basic Duo | 680971 | |
|
Bracket for Aqualift S Duo pressure pipe | 680972 | |
|
Pump hanger for Aqualift S for GTF 1250 Duo | 680974 | |
|
Slotted cover round, d: 362 mm, Polymer | 850134 |
| Catalog Page | |
|---|---|
| Manuals | |
| CAD Data | |
| Declaration of Performance | |
| Declaration of Conformity |
- TÜV test mark (ATTR-376):
ID 1111241937
- Country of origin (ATTR-322): DE
- Area of application (ATTR-264): drainage
- Pump type (ATTR-265): submersible pump
- Pump shaft position (ATTR-266): vertical
- Pump design (ATTR-267): Dry rotor pump
- Pump hydraulics (ATTR-268): single stage
- Pump suction characteristic (ATTR-269): non-self-priming
- Pump drive (ATTR-270): E-motor for alternating current
- Pump casing material (ATTR-272): Polymer
- Upper tolerance of the operating voltage (+) (ATTR-273): 10 PROZ
- Lower tolerance of the operating voltage (-) (ATTR-274): 10 PROZ
- Upper tolerance of the nominal frequency (+) (ATTR-275): 3 PROZ
- Lower tolerance of the nominal frequency (-) (ATTR-276): 2 PROZ
- Pump electrical connection (ATTR-277): 1/N/PE 230V
- Startup circuit for three-phase connection or three-phase current (ATTR-278):
- Motor pump shaft (ATTR-279): continuous
- Shaft seal (ATTR-280): RSSR
- Number of operating pumps (ATTR-281): 1
- Minimum pumped media temperature (ATTR-282): 0 CEL
- Maximum operating pressure (Pmax) (ATTR-283): 1,100 HPA
- Minimum speed for speed adjustment (ATTR-284): no speed adjustment
- Start-up current (ATTR-285): 14.9 AMP
- Vertical installation (ATTR-286): yes
- Pump (ATTR-4):
- Number of pumps (ATTR-181): 2
- Impeller type (ATTR-8): Multi-vane impeller
- Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
- Type of fuse required (electrical protection) (ATTR-N3): C 16 A
- Operating mode (ATTR-10): S3 - 50 %
- Power P1 (ATTR-F4): 1.3 KWT
- Power P2 (ATTR-F5): 0.8 KWT
- Speed (ATTR-F2): 2,700 UMIN
- Operating voltage (ATTR-131): 230 VLT
- Mains frequency (ATTR-N4): 50 HTZ
- Rated current (ATTR-N5): 5.4 AMP
- Max. pumping capacity (ATTR-F7): 20 MQH
- Max. pumping height (ATTR-F8): 11 MTR
- Max. temperature (permanent) of conveyed material (ATTR-132): 40 CEL
- Protection class (ATTR-133): I
- Connection type (ATTR-N1): coded plug
- Protection class (pump) (ATTR-125):
- Length of mains cable for pump (ATTR-11): 10 MTR
- Temperature monitoring (ATTR-135): integrated
- Weight (ATTR-191): 10 KGM
- Insulation class (ATTR-193): F
- Free passage (ATTR-180): 30 MMT
- - (ATTR-372): 260 MMT
- - (ATTR-373): 160 MMT
- Net weight (ATTR-A3A): 22 KGM
- Gross weight (ATTR-A3B): 31 KGM
- Installation depth (ATTR-B2_VB): 830 MMT
- Type of cover (ATTR-A21): Round cover plate
- Colour of cover (ATTR-A2A): black
- Load class (ATTR-A2B):
- Locking (ATTR-A2D): lockable
- Length (ATTR-A2M): 615 MMT
- Width (ATTR-A2N): 600 MMT
- Type of system (ATTR-2): Twin pump station
- Installation (ATTR-164): Wet installation
- Backflow preventer (ATTR-165): integrated
- Pump control (ATTR-134): Control unit

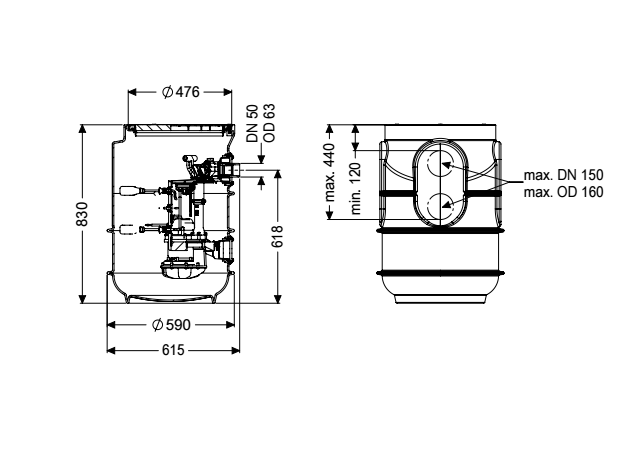

- Length (ATTR-A6A): 590 MMT
- Width (ATTR-A6B): 590 MMT
- Height (ATTR-A6C): 830 MMT
- Volume (ATTR-320): 0.8 MTQ
- Packaging dimension: length (ATTR-325): 900 MMT
- Packaging dimension: width (ATTR-326): 900 MMT
- Packaging dimension: height (ATTR-327): 954 MMT
- Dimensions (ATTR-323): 900X900X954MM
- Number of packages (ATTR-321): 0
- Inlet max. scoring (DN) (ATTR-B1E): 100 MMT
- Pressure pipe connection (DN) (ATTR-B17): 50 MMT
- Pressure pipe connection (OD) (ATTR-B18): 63 MMT
- Pumping volume (ATTR-B10): 60 LTR
- Control unit (ATTR-S2):
Basic
- Self-diagnosis system (SDS) (ATTR-S5): yes
- Battery buffering (ATTR-S6): yes
- Potential-free contact (ATTR-S11): optional
- Length of mains cable for control unit (ATTR-S12): 1.5 MTR
- Connection type (ATTR-S19): Schuko (earthed contact) 2-pin
- Operating voltage (ATTR-S13): 230 VLT
- Mains frequency (ATTR-S14): 50 HTZ
- Protection class control unit (ATTR-S4): IP 54
- Alarm sensor (ATTR-S1): Float switch
- Type of level measurement (ATTR-7A): mechanical
- Motor protection switch (ATTR-172): yes
- - (ATTR-S21):
- - (ATTR-S22):
- - (ATTR-S23):
- Declaration of Performance (DOP) (ATTR-292): 009-098
- Declaration of conformity (ATTR-303): 009-098
- Test report (ATTR-315): DE91T97Y001
- Colour (ATTR-102): black
- Type of wastewater (ATTR-6):
wastewater without sewage
- Standard (ATTR-9): EN 12050-2
- CE marking (ATTR-A5B):
yes
- Installation situation (ATTR-1):
underground installation
- Delivery state (ATTR-189): Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Lifting stations
- Product type (M-ATTR-003): Pumping station
- Product family (M-ATTR-004): Aqualift
- Product name (M-ATTR-005): Aqualift S Basic
- - (ATTR-370):
