Pumping station Aqualift F XL

Duo, SPF 1500-S3, Dry installation

PDF product data sheet

The pumping station for faecal and faecal-free wastewater is equipped with a submersible pump, a backflow preventer and a shut-off valve for the pressure pipe. The collection tank made of permanently resistant polymer (PE) has a closed pump tank (dry installation) with a screwed-on access cover. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact. Alternatively, alarm and collective fault messages can be output via a GSM interface. The KESSEL modular system provides different upper sections and engineering chamber options as accessories.

  • Maximum safety
  • Flexible installation
  • Hygienic advantages for maintenance and repair
Item no. 8742005
GTIN 4026092068601
Discount group 3

Pumping station Aqualift F XL Duo, SPF 1500-S3, Dry installation
The pumping station for faecal and faecal-free wastewater is equipped with a submersible pump, a backflow preventer and a shut-off valve for the pressure pipe. The collection tank made of permanently resistant polymer (PE) has a closed pump tank (dry installation) with a screwed-on access cover. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact. Alternatively, alarm and collective fault messages can be output via a GSM interface. The KESSEL modular system provides different upper sections and engineering chamber options as accessories. Version: Shut-off valve: Shut-off valve made of polymer Type of system: Twin pump station Installation: Dry installation Pump control: Control unit Backflow preventer: integrated Access steps: yes Note on installation depth: Version for deeper installation, in combination with a chamber module Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Installation situation: underground installation, floor slab installation Type of wastewater: wastewater with sewage General characteristics: Colour: black Standard: EN 12050-1 Dimensions: Length: 1,295 mm Width: 1,295 mm Height: 1,403 mm Tank: Number of inlets: 1 ST Inlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Distance pipe bottom inlet to tank bottom: 753 mm Distance from centre of outlet pipe to tank bottom: 1,300 mm Distance from centre of inlet pipe to tank bottom: 833 mm Tank volume: 335 l Pressure pipe connection: horizontal Pressure pipe connection (DN): 80 mm Pressure pipe connection (OD): 90 mm Venting connection (DN): 70 mm Groundwater resistant from lower edge of base section: 3,000 mm Clear width of tank (LW): 1,000 mm Pumping volume: 160 l Free passage: 40 mm Pumping device: Pump: SPF 1500 Number of pumps: 2 Max. pumping capacity: 40 m3/h Max. pumping height: 8 m Operating mode: S3 - 50 % Power P1: 1.4 kW Power P2: 1.1 kW Speed: 1,415 U/min Max. temperature (permanent) of conveyed material: 40 °C Connection type: Direct connection Weight: 24 kg Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Rated current: 2.7 A Protection class (pump): IP 68 (3m/48h) Protection class: I Type of pump connection cable: H07RN-F 7G 1.5 mm2 Temperature monitoring: integrated Cos phi - power factor: 0.77 Expected service life (number of switching cycles): 150,000 Expected service life (hours of operation): 5,000 Std Insulation class: F Max. permissible switching frequency: 20 1/h Control: Control unit: Comfort Operating voltage: 400 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes GSM interface: yes Potential-free contact: yes Type of fuse required (electrical protection): 3 x C 16 A Motor protection switch: yes Protection class control unit: IP 54 Length of mains cable for control unit: 0 m Type of level measurement: pneumatic Level measurement instrument: Immersion pipe Alarm sensor: Immersion pipe

Installation Video

  Title Item no.
Chamber module LW 1000 ground Access LW 800, 411-660 mm, Class K 3 8740002
Chamber module LW 1000 floor slab Access LW 800, 668-917 mm, Class K 3 8740003
Chamber module LW 1000 ground Access LW 800, 396-645 mm, Class A 15 8740004
Chamber module LW 1000 floor slab Access LW 800, 653-902 mm, Class L 15 8740005
Chamber module LW 1000 ground Access LW 800, 661-910 mm, Class K 3 8740008
Chamber module LW 1000 floor slab Access LW 800, 918-1167 mm, Class K 3 8740009
Chamber module LW 1000 ground Access LW 800, 646-895 mm, Class A 15 8740010
Chamber module LW 1000 floor slab Access LW 800, 903-1152 mm, Class L 15 8740011
Chamber module LW 1000 ground Access LW 800, 911-1160 mm, Class K 3 8740014
Chamber module LW 1000 floor slab Access LW 800, 1168-1417 mm, Class K 3 8740015
Chamber module LW 1000 ground Access LW 800, 896-1145 mm, Class A 15 8740016
Chamber module LW 1000 floor slab Access LW 800, 1153-1402 mm, Class L 15 8740017
Chamber module LW 1000 ground Access LW 600, 1130-1379 mm, Class A/B 8740018
Chamber module LW 1000 ground Access LW 600, 1130-1379 mm, Class D 8740019
Chamber module LW 1000 ground Access LW 800, 1161-1410 mm, Class K 3 8740020
Chamber module LW 1000 floor slab Access LW 800, 1418-1667 mm, Class K 3 8740021
Chamber module LW 1000 ground Access LW 800, 1146-1395 mm, Class A 15 8740022
Chamber module LW 1000 floor slab Access LW 800, 1403-1652 mm, Class L 15 8740023
Chamber module LW 1000 ground Access LW 600, 1380-1629 mm, Class A/B 8740024
Chamber module LW 1000 ground Access LW 600, 1380-1629 mm, Class D 8740025
Chamber module LW 1000 ground Access LW 800, 1411-1660 mm, Class K 3 8740026
Chamber module LW 1000 floor slab Access LW 800, 1668-1917 mm, Class K 3 8740027
Chamber module LW 1000 ground Access LW 800, 1396-1645 mm, Class A 15 8740028
Chamber module LW 1000 floor slab Access LW 800, 1653-1902 mm, Class L 15 8740029
Chamber module LW 1000 ground Access LW 600, 1630-1879 mm, Class A/B 8740030
Chamber module LW 1000 ground Access LW 600, 1630-1879 mm, Class D 8740031
Chamber module LW 1000 ground Access LW 800, 1661-1910 mm, Class K 3 8740032
Chamber module LW 1000 ground Access LW 800, 1646-1895 mm, Class A 15 8740034
Chamber module LW 1000 ground Access LW 600, 1880-2129 mm, Class A/B 8740036
Chamber module LW 1000 ground Access LW 600, 1880-2129 mm, Class D 8740037
Chamber module LW 1000 ground Access LW 800, 1911-2160 mm, Class K 3 8740038
Chamber module LW 1000 ground Access LW 800, 1896-2145 mm, Class A 15 8740040
Chamber module LW 1000 ground Access LW 600, 2130-2379 mm, Class A/B 8740042
Chamber module LW 1000 ground Access LW 600, 2130-2379 mm, Class D 8740043
Chamber module LW 1000 ground Access LW 800, 2161-2410 mm, Class K 3 8740044
Chamber module LW 1000 ground Access LW 800, 2146-2395 mm, Class A 15 8740046
Chamber module LW 1000 ground Access LW 600, 2380-2629 mm, Class A/B 8740048
Chamber module LW 1000 ground Access LW 600, 2380-2629 mm, Class D 8740049
Chamber module LW 1000 ground Access LW 800, 2411-2660 mm, Class K 3 8740050
Chamber module LW 1000 ground Access LW 800, 2396-2645 mm, Class A 15 8740052
Chamber module LW 1000 ground Access LW 600, 2630-2879 mm, Class A/B 8740054
Chamber module LW 1000 ground Access LW 600, 2630-2879 mm, Class D 8740055
Chamber module LW 1000 ground Access LW 800, 2661-2910 mm, Class K 3 8740056
Chamber module LW 1000 ground Access LW 800, 2646-2895 mm, Class A 15 8740058
Chamber module LW 1000 ground Access LW 600, 2880-3129 mm, Class A/B 8740060
Chamber module LW 1000 ground Access LW 600, 2880-3129 mm, Class D 8740061
Chamber module LW 1000 ground Access LW 800, 2911-3160 mm, Class K 3 8740062
Chamber module LW 1000 ground Access LW 800, 2896-3145 mm, Class A 15 8740064
Chamber module LW 1000 ground Access LW 600, 3130-3379 mm, Class A/B 8740066
Chamber module LW 1000 ground Access LW 600, 3130-3379 mm, Class D 8740067
Chamber module LW 1000 ground Access LW 800, 3161-3410 mm, Class K 3 8740068
Chamber module LW 1000 ground Access LW 800, 3146-3395 mm, Class A 15 8740070
Chamber module LW 1000 ground Access LW 600, 3380-3629 mm, Class A/B 8740072
Chamber module LW 1000 ground Access LW 600, 3380-3629 mm, Class D 8740073
Chamber module LW 1000 ground Access LW 800, 3411-3660 mm, Class K 3 8740074
Chamber module LW 1000 ground Access LW 800, 3396-3645 mm, Class A 15 8740076
Chamber module LW 1000 ground Access LW 600, 3630-3879 mm, Class A/B 8740078
Chamber module LW 1000 ground Access LW 600, 3630-3879 mm, Class D 8740079
Chamber module LW 1000 ground Access LW 800, 3661-3910 mm, Class K 3 8740080
Chamber module LW 1000 ground Access LW 800, 3646-3895 mm, Class A 15 8740082
Chamber module LW 1000 ground Access LW 600, 3880-4129 mm, Class A/B 8740084
Chamber module LW 1000 ground Access LW 600, 3880-4129 mm, Class D 8740085
Chamber module LW 1000 ground Access LW 800, 3911-4160 mm, Class K 3 8740086
Chamber module LW 1000 ground Access LW 800, 3896-4145 mm, Class A 15 8740088
Chamber module LW 1000 ground Access LW 800, 375-624 mm, Class K 3 8740122
Chamber module LW 1000 ground Access LW 800, 625-874 mm, Class K 3 8740123
Chamber module LW 1000 ground Access LW 800, 875-1124 mm, Class K 3 8740124
Chamber module LW 1000 ground Access LW 800, 1125-1374 mm, Class K 3 8740125
Chamber module LW 1000 ground Access LW 800, 1375-1624 mm, Class K 3 8740126
Chamber module LW 1000 ground Access LW 800, 1625-1874 mm, Class K 3 8740127
Chamber module LW 1000 ground Access LW 800, 1875-2124 mm, Class K 3 8740128
Chamber module LW 1000 ground Access LW 800, 2125-2374 mm, Class K 3 8740129
Chamber module LW 1000 ground Access LW 800, 2375-2624 mm, Class K 3 8740130
Chamber module LW 1000 ground Access LW 800, 2625-2874 mm, Class K 3 8740131
Chamber module LW 1000 ground Access LW 800, 2875-3124 mm, Class K 3 8740132
Chamber module LW 1000 ground Access LW 800, 3125-3374 mm, Class K 3 8740133
Chamber module LW 1000 ground Access LW 800, 3375-3624 mm, Class K 3 8740134
Chamber module LW 1000 ground Access LW 800, 3625-3874 mm, Class K 3 8740135
Chamber module LW 1000 ground Access LW 800, 3875-4124 mm, Class K 3 8740136
Chamber module LW 1000 ground Access LW 800, 620-869 mm, Class B 8740141
Chamber module LW 1000 ground Access LW 800, 870-1119 mm, Class B 8740142
Chamber module LW 1000 ground Access LW 800, 1120-1369 mm, Class B 8740143
Chamber module LW 1000 ground Access LW 800, 620-869 mm, Class D 8740158
Chamber module LW 1000 ground Access LW 800, 870-1119 mm, Class D 8740159
Chamber module LW 1000 ground Access LW 800, 1120-1369 mm, Class D 8740160
  Title Item no.
  Title Item no.
Basic warning device with electronic probe 20222
Basic warning device with optical probe 20223
Compressor set for air bubbling 28048
TeleControl GSM modem for Comfort control units 230V/400V 28792
Connection box for level sensor extension 28799
Intermediate Part T-Chamber 250mm 680370
Intermediate Part T-Chamber 500mm 680371
Replacement set optical probe 80888
10 m probe cable extension set 80889
Installation set Thermostat, Hygrostat 97713
Outdoor control cabinet W: 590 mm, for control unit installation 97714
Warning beacon for outdoor control cabinet 97715
Outdoor control cabinet W: 460 mm, for control unit installation 97716
Outdoor control cabinet W: 785 mm, for control unit installation 97723
Outdoor control cabinet W: 1115 mm, for control unit installation 97724
  Title Item no.
Replacement set pump flange 28051
Comfort control unit 400V, Aqualift Duo, 2x2.5-4.0 A 28757
Battery 9 Volt Block 680034
Seal for pump flange 680045
Screws (14 p.) 680047
Pump flange "F" SPF 1400-4500 680050
Flange seal for SPF 1400-4500 680052
Gasket,s.s. non-return flap with housing 680053
Pump SPF1500-S3 10m 680098
Mono Submersible Pipe 680388
Throttle housing Duo 680419
Cover for Aqualift F XL 680421
Gasket set for Aqualift F XL 680422
Pressure pipe DN 90 for Aqualift F XL 680423
  • Installation situation (ATTR-1): underground installation
  • TÜV test mark (ATTR-376): ID 1111241940
  • Country of origin (ATTR-322): DE
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): Freestanding pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for three-phase current
  • E-motor, type of startup (ATTR-271): direct
  • Pump casing material (ATTR-272): Grey iron
  • Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
  • Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
  • Upper tolerance of the nominal frequency (+) (ATTR-275): 3  PROZ
  • Lower tolerance of the nominal frequency (-) (ATTR-276): 2  PROZ
  • Pump electrical connection (ATTR-277): 3/N/PE 400V
  • Startup circuit for three-phase connection or three-phase current (ATTR-278): Star
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): RSSR
  • Number of operating pumps (ATTR-281): 1
  • Minimum pumped media temperature (ATTR-282): 0  CEL
  • Maximum operating pressure (Pmax) (ATTR-283): 800  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Start-up current (ATTR-285): 21  AMP
  • Vertical installation (ATTR-286): yes
  • Operating mode, twin systems (ATTR-287): redundant
  • Pump (ATTR-4): SPF 1500
  • Number of pumps (ATTR-181): 2
  • Impeller type (ATTR-8): Multi-vane impeller
  • Type of pump connection cable (ATTR-N2): H07RN-F 7G 1.5 mm2
  • Max. permissible switching frequency (ATTR-162): 20  1PH
  • Operating mode (ATTR-10): S3 - 50 %
  • Power P1 (ATTR-F4): 1.4  KWT
  • Power P2 (ATTR-F5): 1.1  KWT
  • Speed (ATTR-F2): 1,415  UMIN
  • Rated current (ATTR-N5): 2.7  AMP
  • Max. pumping capacity (ATTR-F7): 40  MQH
  • Max. pumping height (ATTR-F8): 8  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): Direct connection
  • Protection class (pump) (ATTR-125): IP 68 (3m/48h)
  • Length of mains cable for pump (ATTR-11): 10  MTR
  • Temperature monitoring (ATTR-135): integrated
  • Weight (ATTR-191): 24  KGM
  • Cos phi - power factor (ATTR-192): 0.8
  • Insulation class (ATTR-193): F
  • Expected service life (hours of operation) (ATTR-194): 5,000  HUR
  • Expected service life (number of switching cycles) (ATTR-195): 150,000
  • Net weight (ATTR-A3A): 204  KGM
  • Gross weight (ATTR-A3B): 228  KGM
  • Shut-off valve (ATTR-A1): Shut-off valve made of polymer
  • Pressure pipe connection (ATTR-B7): horizontal
  • Type of system (ATTR-2): Twin pump station
  • Installation (ATTR-164): Dry installation
  • Backflow preventer (ATTR-165): integrated
  • Pump control (ATTR-134): Control unit
  • Access steps (ATTR-182): yes
  • Note on installation depth (ATTR-188): Version for deeper installation

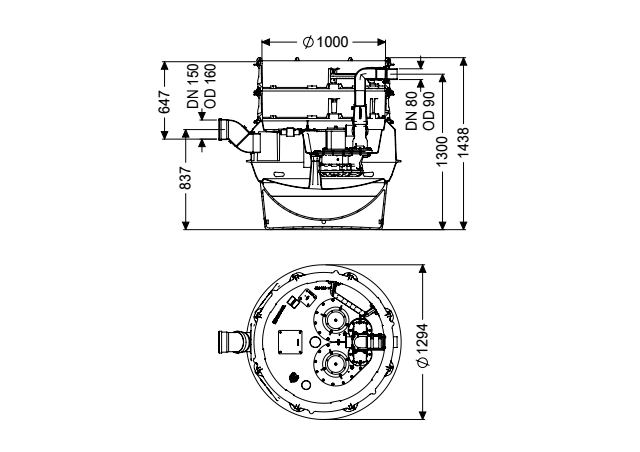

  • Length (ATTR-A6A): 1,295  MMT
  • Width (ATTR-A6B): 1,295  MMT
  • Height (ATTR-A6C): 1,403  MMT
  • Volume (ATTR-320): 3.7  MTQ
  • Packaging dimension: length (ATTR-325): 2,000  MMT
  • Packaging dimension: width (ATTR-326): 1,300  MMT
  • Packaging dimension: height (ATTR-327): 1,435  MMT
  • Dimensions (ATTR-323): 1300X1300X1600MM/800X700X1000MM
  • Number of packages (ATTR-321): 0
  • Control unit (ATTR-S2): Comfort
  • Self-diagnosis system (SDS) (ATTR-S5): yes
  • Battery buffering (ATTR-S6): yes
  • Multi-line display (ATTR-S7): yes
  • Log book function (ATTR-S8): yes
  • GSM interface (ATTR-S10): yes
  • Potential-free contact (ATTR-S11): yes
  • Length of mains cable for control unit (ATTR-S12): 0  MTR
  • Operating voltage (ATTR-S13): 400  VLT
  • Mains frequency (ATTR-S14): 50  HTZ
  • Protection class control unit (ATTR-S4): IP 54
  • Alarm sensor (ATTR-S1): Immersion pipe
  • Type of level measurement (ATTR-7A): pneumatic
  • Level measurement instrument (ATTR-7B): Immersion pipe
  • Type of fuse required (electrical protection) (ATTR-S17): 3 x C 16 A
  • Motor protection switch (ATTR-172): yes
  • Clear width of tank (LW) (ATTR-B14): 1,000  MMT
  • Number of inlets (ATTR-B1B): 1  PCE
  • Inlet nominal size (DN) (ATTR-B1CA): 150  MMT
  • Inlet nominal size (OD) (ATTR-B1CB): 160  MMT
  • Distance from centre of inlet pipe to tank bottom (ATTR-B6): 833  MMT
  • Distance pipe bottom inlet to tank bottom (ATTR-B1D): 753  MMT
  • Distance from centre of outlet pipe to tank bottom (ATTR-B15E): 1,300  MMT
  • Venting connection (DN) (ATTR-B4): 70  MMT
  • Pressure pipe connection (DN) (ATTR-B17): 80  MMT
  • Pressure pipe connection (OD) (ATTR-B18): 90  MMT
  • Tank volume (ATTR-B9): 335  LTR
  • Pumping volume (ATTR-B10): 160  LTR
  • Groundwater resistant from lower edge of base section (ATTR-B12): 3,000  MMT
  • Distance from inlet pipe invert to top of tank (ATTR-318): 650  MMT
  • Colour (ATTR-102): black
  • Standard (ATTR-9): EN 12050-1
  • CE marking (ATTR-A5B): yes
  • External monitoring (ATTR-A8): LGA
  • Free passage (ATTR-180): 40  MMT
  • Delivery state (ATTR-189): Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
  • Declaration of Performance (DOP) (ATTR-292): 009-034
  • Wastewater quantity (ATTR-310): High
  • Type of wastewater (ATTR-6): wastewater with sewage
  • Declaration of conformity (ATTR-303): 009-034-D
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Lifting stations
  • Product type (M-ATTR-003): Pumping station
  • Product family (M-ATTR-004): Aqualift
  • Product name (M-ATTR-005): Aqualift F XL
