• Installation situation (ATTR-1): underground installation
• TÜV test mark (ATTR-376): ID 1111241940
• Area of application (ATTR-264): drainage
• Pump type (ATTR-265): Freestanding pump
• Pump shaft position (ATTR-266): vertical
• Pump design (ATTR-267): Dry rotor pump
• Pump hydraulics (ATTR-268): single stage
• Pump suction characteristic (ATTR-269): non-self-priming
• Pump drive (ATTR-270): E-motor for alternating current
• E-motor, type of startup (ATTR-271): direct
• Pump casing material (ATTR-272): Grey iron
• Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
• Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
• Upper tolerance of the nominal frequency (+) (ATTR-275): 3  PROZ
• Lower tolerance of the nominal frequency (-) (ATTR-276): 2  PROZ
• Pump electrical connection (ATTR-277): 1/N/PE 230V
• Motor pump shaft (ATTR-279): continuous
• Shaft seal (ATTR-280): RSSR
• Number of operating pumps (ATTR-281): 1
• Minimum pumped media temperature (ATTR-282): 0  CEL
• Maximum operating pressure (Pmax) (ATTR-283): 700  HPA
• Minimum speed for speed adjustment (ATTR-284): no speed adjustment
• Start-up current (ATTR-285): 23  AMP
• Vertical installation (ATTR-286): yes
• Pump (ATTR-4): SPF 1400
• Number of pumps (ATTR-181): 1
• Impeller type (ATTR-8): Multi-vane impeller
• Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.5 mm2
• Max. permissible switching frequency (ATTR-162): 20  1PH
• Operating mode (ATTR-10): S3 - 50 %
• Power P1 (ATTR-F4): 1.6  KWT
• Power P2 (ATTR-F5): 1.1  KWT
• Speed (ATTR-F2): 1,370  UMIN
• Rated current (ATTR-N5): 7.3  AMP
• Max. pumping capacity (ATTR-F7): 38  MQH
• Max. pumping height (ATTR-F8): 7  MTR
• Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
• Protection class (ATTR-133): I
• Connection type (ATTR-N1): coded plug
• Protection class (pump) (ATTR-125): IP 68 (3m/48h)
• Length of mains cable for pump (ATTR-11): 10  MTR
• Temperature monitoring (ATTR-135): integrated
• Weight (ATTR-191): 25  KGM
• Cos phi - power factor (ATTR-192): 1.0
• Insulation class (ATTR-193): F
• Expected service life (hours of operation) (ATTR-194): 5,000  HUR
• Expected service life (number of switching cycles) (ATTR-195): 150,000
• Net weight (ATTR-A3A): 106.3  KGM
• Gross weight (ATTR-A3B): 127  KGM
• Shut-off valve (ATTR-A1): Shut-off valve made of polymer
• Pressure pipe connection (ATTR-B7): horizontal
• Type of system (ATTR-2): Single station
• Installation (ATTR-164): Dry installation
• Backflow preventer (ATTR-165): integrated
• Pump control (ATTR-134): Control unit
• Access steps (ATTR-182): yes
• Note on installation depth (ATTR-188): Version with lowest installation height
• Length (ATTR-A6A): 1,295  MMT
• Width (ATTR-A6B): 1,295  MMT
• Height (ATTR-A6C): 1,500  MMT
• Volume (ATTR-320): 3.7  MTQ
• Packaging dimension: length (ATTR-325): 2,000  MMT
• Packaging dimension: width (ATTR-326): 1,300  MMT
• Packaging dimension: height (ATTR-327): 1,435  MMT
• Dimensions (ATTR-323): 2000X1300X1435MM
• Number of packages (ATTR-321): 0
• Control unit (ATTR-S2): Comfort
• Self-diagnosis system (SDS) (ATTR-S5): yes
• Battery buffering (ATTR-S6): yes
• Multi-line display (ATTR-S7): yes
• Log book function (ATTR-S8): yes
• USB interface (ATTR-S9): yes
• GSM interface (ATTR-S10): yes
• Potential-free contact (ATTR-S11): optional
• Length of mains cable for control unit (ATTR-S12): 1.4  MTR
• Operating voltage (ATTR-S13): 230  VLT
• Mains frequency (ATTR-S14): 50  HTZ
• Protection class control unit (ATTR-S4): IP 54
• Alarm sensor (ATTR-S1): Immersion pipe
• Type of level measurement (ATTR-7A): pneumatic
• Level measurement instrument (ATTR-7B): Immersion pipe
• Type of fuse required (electrical protection) (ATTR-S17): C 16 A

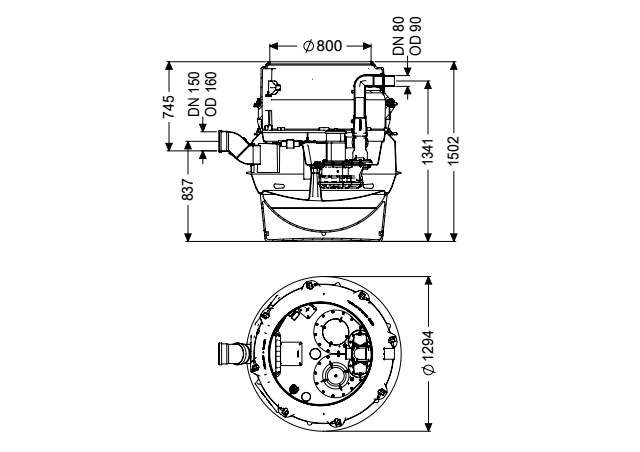

• Clear width of entry (LW) (ATTR-B13): 800  MMT
• Clear width of tank (LW) (ATTR-B14): 1,000  MMT
• Number of inlets (ATTR-B1B): 1  PCE
• Inlet nominal size (DN) (ATTR-B1CA): 150  MMT
• Inlet nominal size (OD) (ATTR-B1CB): 160  MMT
• Distance from centre of inlet pipe to tank bottom (ATTR-B6): 833  MMT
• Distance pipe bottom inlet to tank bottom (ATTR-B1D): 753  MMT
• Distance from centre of outlet pipe to tank bottom (ATTR-B15E): 1,343  MMT
• Venting connection (DN) (ATTR-B4): 70  MMT
• Pressure pipe connection (DN) (ATTR-B17): 80  MMT
• Pressure pipe connection (OD) (ATTR-B18): 90  MMT
• Tank volume (ATTR-B9): 335  LTR
• Pumping volume (ATTR-B10): 160  LTR
• Groundwater resistant from lower edge of base section (ATTR-B12): 3,000  MMT
• Distance from inlet pipe invert to top of tank (ATTR-318): 747  MMT
• Colour (ATTR-102): black
• Standard (ATTR-9): EN 12050-1
• CE marking (ATTR-A5B): yes
• External monitoring (ATTR-A8): LGA
• Free passage (ATTR-180): 40  MMT
• Delivery state (ATTR-189): Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
• Declaration of Performance (DOP) (ATTR-292): 009-034
• Wastewater quantity (ATTR-310): High
• Type of wastewater (ATTR-6): wastewater with sewage
• Declaration of conformity (ATTR-303): 009-034-D
• Brand (M-ATTR-001): KESSEL
• Product group (M-ATTR-002): Lifting stations
• Product type (M-ATTR-003): Pumping station
• Product family (M-ATTR-004): Aqualift
• Product name (M-ATTR-005): Aqualift F XL
