• Declaration of Performance (DOP) (ATTR-292): 009-047
• Installation situation (ATTR-1): underground installation
• TÜV test mark (ATTR-376): ID 1111241937
• Area of application (ATTR-264): drainage
• Pump type (ATTR-265): submersible pump
• Pump shaft position (ATTR-266): vertical
• Pump design (ATTR-267): Dry rotor pump
• Pump hydraulics (ATTR-268): single stage
• Pump suction characteristic (ATTR-269): non-self-priming
• Pump drive (ATTR-270): E-motor for alternating current
• E-motor, type of startup (ATTR-271): direct
• Pump casing material (ATTR-272): Polymer
• Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
• Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
• Upper tolerance of the nominal frequency (+) (ATTR-275): 3  PROZ
• Lower tolerance of the nominal frequency (-) (ATTR-276): 2  PROZ
• Pump electrical connection (ATTR-277): 1/N/PE 230V
• Motor pump shaft (ATTR-279): continuous
• Shaft seal (ATTR-280): RSSR
• Number of operating pumps (ATTR-281): 1
• Minimum pumped media temperature (ATTR-282): 0  CEL
• Maximum operating pressure (Pmax) (ATTR-283): 900  HPA
• Minimum speed for speed adjustment (ATTR-284): no speed adjustment
• Start-up current (ATTR-285): 14.9  AMP
• Vertical installation (ATTR-286): yes
• Pump (ATTR-4): GTF 1200
• Number of pumps (ATTR-181): 1
• Impeller type (ATTR-8): Multi-vane impeller
• Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
• Type of fuse required (electrical protection) (ATTR-N3): C 16 A
• Max. permissible switching frequency (ATTR-162): 20  1PH
• Operating mode (ATTR-10): S3 - 50 %
• Power P1 (ATTR-F4): 1.4  KWT
• Power P2 (ATTR-F5): 0.8  KWT
• Speed (ATTR-F2): 2,650  UMIN
• Rated current (ATTR-N5): 6.2  AMP
• Max. pumping capacity (ATTR-F7): 15.5  MQH
• Max. pumping height (ATTR-F8): 9  MTR
• Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
• Protection class (ATTR-133): I
• Connection type (ATTR-N1): coded plug
• Protection class (pump) (ATTR-125): IP 68 (3m)
• Length of mains cable for pump (ATTR-11): 10  MTR
• Temperature monitoring (ATTR-135): integrated
• Weight (ATTR-191): 10  KGM
• Cos phi - power factor (ATTR-192): 1.0
• Insulation class (ATTR-193): F
• Expected service life (hours of operation) (ATTR-194): 5,000  HUR
• Expected service life (number of switching cycles) (ATTR-195): 150,000
• Net weight (ATTR-A3A): 98  KGM
• Gross weight (ATTR-A3B): 113  KGM
• Shut-off valve (ATTR-A1): without shut-off valve
• Pressure pipe connection (ATTR-B7): horizontal
• Type of system (ATTR-2): Single station
• Installation (ATTR-164): Wet installation
• Backflow preventer (ATTR-165): integrated
• Pump control (ATTR-134): Float switch
• Access steps (ATTR-182): yes
• Note on installation depth (ATTR-188): in combination with a chamber module
• Passage seal for ventilation pipe (DN) (ATTR-183): 100  MMT
• Passage seal for conduit pipe (DN) (ATTR-184): 100  MMT
• Clear width of tank (LW) (ATTR-B14): 1,000  MMT
• Number of inlets (ATTR-B1B): 1  PCE
• Inlet nominal size (DN) (ATTR-B1CA): 150  MMT
• Inlet nominal size (OD) (ATTR-B1CB): 160  MMT

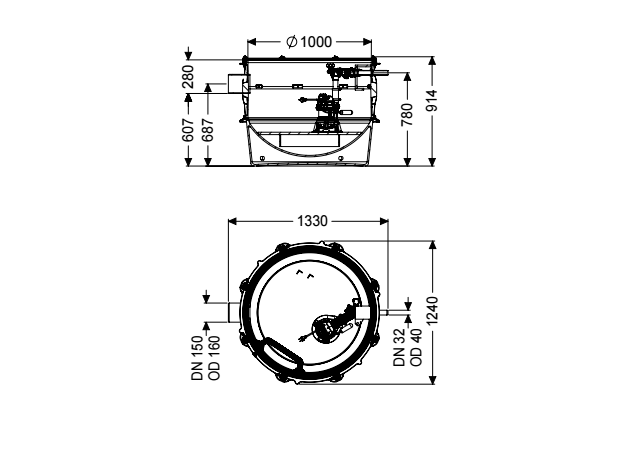

• Distance from centre of inlet pipe to tank bottom (ATTR-B6): 687  MMT
• Distance pipe bottom inlet to tank bottom (ATTR-B1D): 607  MMT
• Inlet max. scoring (DN) (ATTR-B1E): 150  MMT
• Distance from centre of outlet pipe to tank bottom (ATTR-B15E): 780  MMT
• Pressure pipe connection (DN) (ATTR-B17): 32  MMT
• Pressure pipe connection (OD) (ATTR-B18): 40  MMT
• Pumping volume (ATTR-B10): 100  LTR
• Groundwater resistant from lower edge of base section (ATTR-B12): 3,000  MMT
• Distance from inlet pipe invert to top of tank (ATTR-318): 281  MMT
• Length (ATTR-A6A): 1,330  MMT
• Width (ATTR-A6B): 1,240  MMT
• Height (ATTR-A6C): 914  MMT
• Volume (ATTR-320): 1.8  MTQ
• Packaging dimension: length (ATTR-325): 1,300  MMT
• Packaging dimension: width (ATTR-326): 1,300  MMT
• Packaging dimension: height (ATTR-327): 1,050  MMT
• Dimensions (ATTR-323): 1300X1300X1050MM
• Number of packages (ATTR-321): 0
• Operating voltage (ATTR-S13): 230  VLT
• Mains frequency (ATTR-S14): 50  HTZ
• Type of level measurement (ATTR-7A): mechanical
• Level measurement instrument (ATTR-7B): Float switch
• Wastewater quantity (ATTR-310): High
• Type of wastewater (ATTR-6): wastewater without sewage
• Colour (ATTR-102): black
• Standard (ATTR-9): EN 12050-2
• CE marking (ATTR-A5B): yes
• Delivery state (ATTR-189): Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
• External monitoring (ATTR-A8): LGA
• Brand (M-ATTR-001): KESSEL
• Product group (M-ATTR-002): Lifting stations
• Product type (M-ATTR-003): Pumping station
• Product family (M-ATTR-004): Aqualift
• Product name (M-ATTR-005): Aqualift S XL
