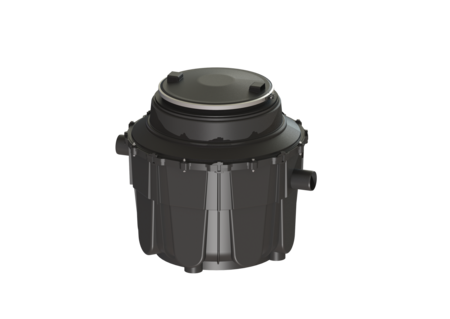

Grease separat. EasyClean Modular

free, NS 1, Standard, 2-part

PDF product data sheet

The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank (NS 0.5 with two tanks) made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty.

  • Ideal where access is tight
  • can be divided into several parts for insertion, for an insertion opening of max. 66 cm
  • Low-maintenance operation
Item no. 93001
GTIN 4026092030875
Discount group 3

Grease separat. EasyClean Modular free, NS 1, Standard, 2-part
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank (NS 0.5 with two tanks) made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Version: Type of disposal: manual with suction hose Disposal variant: Standard Refill inlet in accordance with DIN 1988: no Nominal size (NS): 1 Inspection window: no Shredder-Mix-System: no SonicControl: no Delivery state: Installation-ready (connection parts must be connected on site) Installation situation: free-standing set-up General characteristics: Material: PE Dimensions: Set-up area, length: 1,100 mm Set-up area, width: 1,012 mm Set-up area, height: 988 mm Height tank bottom up to centre section: 648 mm Height centre section to top edge of tank: 340 mm Tank: Inlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 Outlet nominal size (OD): 110 Distance pipe bottom inlet to tank bottom: 485 mm Distance pipe bottom outlet to tank bottom: 415 mm Chamber system: two-piece chamber Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features: Type of cover: Cover Cover material: Polymer Colour of cover: black Tightness: odour-tight Locking: Quick-release closure Wastewater contents: Separator contents: 100 l Total volume: 200 l Contents of sludge trap: 100 l Storage quantity of grease: 40 l Control: Control unit: no
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Declaration of Performance (DOP) (ATTR-292): 009-025
  • Country of origin (ATTR-322): DE
  • Net weight (ATTR-A3A): 41.5  KGM
  • Storage quantity of grease (ATTR-208): 40  LTR
  • Total volume (ATTR-209): 200  LTR
  • Chamber system (ATTR-B8): two-piece chamber
  • Nominal size (NS) (ATTR-197): 1
  • Disposal variant (ATTR-198): Standard
  • Type of disposal (ATTR-199): manual with suction hose
  • Shredder-Mix-System (ATTR-201): no
  • SonicControl (ATTR-202): no
  • Inspection window (ATTR-203): no
  • Refill inlet in accordance with DIN 1988 (ATTR-204): no
  • Type of cover (ATTR-A21): Cover
  • Colour of cover (ATTR-A2A): black
  • Tightness (ATTR-A2C): odour-tight
  • Locking (ATTR-A2D): Quick-release closure
  • Cover material (ATTR-A2E): Polymer
  • Set-up area, length (ATTR-A7A): 1,100  MMT
  • Set-up area, width (ATTR-A7B): 1,012  MMT
  • Set-up area, height (ATTR-A7C): 988  MMT
  • Height tank bottom up to centre section (ATTR-220): 648  MMT
  • Height centre section to top edge of tank (ATTR-222): 340  MMT
  • Volume (ATTR-320): 1.5  MTQ
  • Packaging dimension: length (ATTR-325): 1,200  MMT
  • Packaging dimension: width (ATTR-326): 1,100  MMT
  • Packaging dimension: height (ATTR-327): 1,140  MMT
  • Dimensions (ATTR-323): 1200X1100X1140MM
  • Number of packages (ATTR-321): 0
  • Control unit (ATTR-S2): no
  • Connection inlet/outlet sockets (ATTR-B14B): PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS
  • Inlet nominal size (DN) (ATTR-B1CA): 100  MMT
  • Inlet nominal size (OD) (ATTR-B1CB): 110  MMT
  • Distance pipe bottom inlet to tank bottom (ATTR-B1D): 485  MMT
  • Outlet nominal size (DN) (ATTR-B15CA): 100
  • Outlet nominal size (OD) (ATTR-B15CB): 110
  • Distance pipe bottom outlet to tank bottom (ATTR-B15D): 415  MMT
  • Contents of sludge trap (ATTR-206): 100  LTR
  • Separator contents (ATTR-207): 100  LTR
  • Gross weight (ATTR-A3B): 51  KGM
  • Installation situation (ATTR-1): free-standing set-up
  • Material (ATTR-101): PE
  • Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
  • Reaction to fire (ATTR-306): Class E to EN 13501-1
  • Notified test body (ATTR-307): nb0979
  • Year of initial approval (ATTR-308): 2,015
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Separator technology
  • Product type (M-ATTR-003): Grease separator
  • Product family (M-ATTR-004): EasyClean
  • Product name (M-ATTR-005): EasyClean Modular
