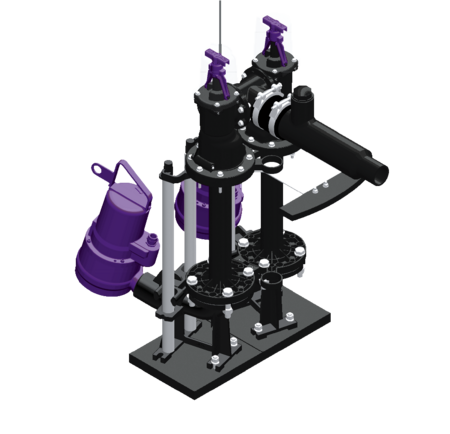

Retrofit kit Aqualift F XL
Mono, STZ 2500-M
Retrofit kit Aqualift F XL Mono, STZ 2500-M
Version: Shut-off valve: yes Type of system: Single station Backflow preventer: integrated Tank: Pressure pipe connection (DN): 50 mm Pressure pipe connection (OD): 63 mm Pumping device: Pump: STZ 2500 Number of pumps: 1 Max. pumping capacity: 21 m3/h Max. pumping height: 33 m Operating voltage: 400 V Mains frequency: 50 Hz Operating mode: S1 Power P1: 2.5 kW Power P2: 1.9 kW Type of fuse required (electrical protection): 3 x C 16 A Impeller type: Macerator Length of mains cable for pump: 10 m Rated current: 4.4 A Protection class (pump): IP 68 (20m/48h) Control: Control unit: Comfort Self-diagnosis system (SDS): yes Multi-line display: yes GSM interface: yes Potential-free contact: yes Level measurement instrument: Level sensor
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Catalog Page |
|---|
- Pump (ATTR-4): STZ 2500
- Number of pumps (ATTR-181): 1
- Impeller type (ATTR-8): Macerator
- Type of fuse required (electrical protection) (ATTR-N3): 3 x C 16 A
- Operating mode (ATTR-10): S1
- Power P1 (ATTR-F4): 2.5 KWT
- Power P2 (ATTR-F5): 1.9 KWT
- Operating voltage (ATTR-131): 400 VLT
- Mains frequency (ATTR-N4): 50 HTZ
- Rated current (ATTR-N5): 4.4 AMP
- Max. pumping capacity (ATTR-F7): 21 MQH
- Max. pumping height (ATTR-F8): 33 MTR
- Protection class (pump) (ATTR-125): IP 68 (20m/48h)
- Length of mains cable for pump (ATTR-11): 10 MTR
- Number of packages (ATTR-321): 0
- Shut-off valve (ATTR-A1): yes
- Type of system (ATTR-2): Single station
- Backflow preventer (ATTR-165): integrated
- Pressure pipe connection (DN) (ATTR-B17): 50 MMT
- Pressure pipe connection (OD) (ATTR-B18): 63 MMT
- Control unit (ATTR-S2):
Comfort
- Self-diagnosis system (SDS) (ATTR-S5): yes
- Multi-line display (ATTR-S7): yes
- GSM interface (ATTR-S10): yes
- Potential-free contact (ATTR-S11): yes
- Level measurement instrument (ATTR-7B): Level sensor
- ATEX (ATTR-136): ja
