Aqualift F XL, 200 L lift. stat.
Mono, SPF 1400-S3

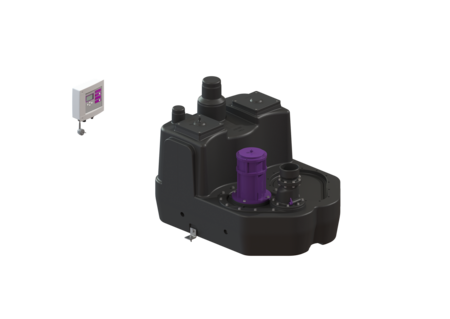

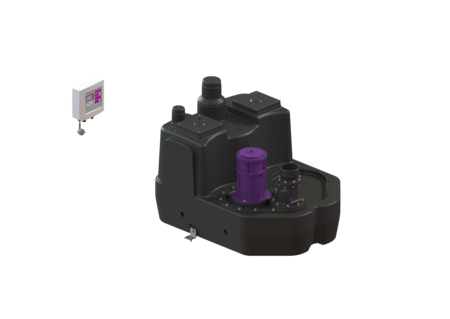

KESSEL Aqualift F XL, 200 L lift. stat. Mono, Single unit, 230 V, shut-off valve without shut-off valve, with a submersible SPF 1400 pump, sound absorption mat yes, alarm generator with Immersion pipe, operating mode S3 - 50 %, pressure pipe connection vertical
- Different performance classes available
- Pressure sensor for reliable pneumatic level measurement
- Maximum operating reliability due to intelligent control unit (Duo)
Item no. | 11000 |
---|---|
GTIN | 4026092056677 |
Price group | 50 |
Aqualift F XL, 200 L lift. stat. Mono, SPF 1400-S3
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: Single unit Shut-off valve: without shut-off valve Retaining bracket for the lift protection: yes Sound absorption mat: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) System type: Mono ATEX: no Dimensions Net weight: 65,23 kg Gross weight: 85,23 kg Length: 980 mm Width: 760 mm Height: 770 mm Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Inlet max. scoring (DN): 200 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 120 l Tank volume: 200 l Pumping device Pump: SPF 1400 Number of pumps: 1 Weight, pump: 25 kg Connection type: coded plug Rated current: 7,3 A Protection class: I Insulation class: F Cos phi - power factor: 0,98 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 38 m³/h Max. pumping height: 7 m Speed: 1370 U/min Power P1: 1,6 kW Power P2: 1,1 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Control unit: Comfort Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show | |
Retrofit kit Alarm float switch, for lifting station | 28014 | Show | |
Connection adapter Flange socket DN 100, press. pipe PE | 28020 | Show | |
Backflow preventer DN 80, grey cast iron | 28021 | Show | |
Compressor set for air bubbling | 28048 | Show | |
Connection adapter Flange socket DN 80, press. pipe PE | 28067 | Show | |
Flange adapter DN 80 to DN 100, Grey iron | 28068 | Show | |
Flexible coupling DN 80, L: 200 mm | 28662 | Show | |
Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Show | |
Shut-off valve DN 80, Polymer, horizontal | 28682 | Show | |
Shut-off valve DN 100, Polymer, horizontal | 28683 | Show | |
Shut-off valve DN 100, Polymer | 28698 | Show | |
Shut-off valve DN 150, Polymer | 28699 | Show | |
Flange joint DN 100, for polymer fittings | 28712 | Show | |
Flange joint DN 80, for polymer fittings | 28713 | Show | |
Flange adapter DN 80, for polymer fitting | 28714 | Show | |
Shut-off valve DN 80, Polymer, vertical | 28715 | Show | |
Shut-off valve DN 80, Polymer, vertical with flange | 28716 | Show | |
TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Show | |
Potential-free contact Additio. circuit board for control units | 80072 | Show |
Title | Item no. | ||
---|---|---|---|
Retrofit kit Alarm float switch, for lifting station | 28014 | Show | |
Pump drive SPF 1400 230 V, S3, 5 m cable, with capacitor | 28029 | Show | |
Immersion pipe 5 m Schlauch, incl. screws | 28050 | Show | |
Replacement set pump flange with screw set, flange gasket | 28051 | Show | |
Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Show | |
Flap housing set Mono, DN 100 | 28676 | Show | |
Control unit Comfort Mono, 230 V | 28731 | Show | |
Seal DN 150 | 680003 | Show | |
Battery 9 V block | 680034 | Show | |
Seal Pump flange | 680045 | Show | |
Attachment bracket with screws (2 ea.) | 680046 | Show | |
Screw set galvanised, 14 each | 680047 | Show | |
Pump flange SPF 1400 - SPF 4500 | 680050 | Show | |
Seal for SPF 1400 - SPF 4500 | 680052 | Show | |
Flap set Rolling ring, flap, flap holder | 680053 | Show | |
Flap housing for Mono systems, without shut-off valve | 680060 | Show | |
Cleaning cover screwed, DN 160 | 680421 | Show |
Manuals | |
---|---|
CAD Data | |
Test Reports and Certificates | |
Declaration of Performance | |
Declaration of Conformity |
- CE marking (ce_kennzeichnung): yes
- Type of wastewater (abwasserart_de): with sewage
- Control unit (schaltgeraet): Comfort
- TÜV test mark (pruefzeichen): ID 1111241940
- Installation situation (einbausituation): free-standing installation
- Pump (pumpe): SPF 1400-S3
- Impeller type (laufrad_typ): Multi-vane impeller
- Shut-off valve (absperreinrichtung): without shut-off valve
