Aqualift F XL, 200 L lift. stat.
Duo, SPF 1400-S3, Cast-iron shut-off val

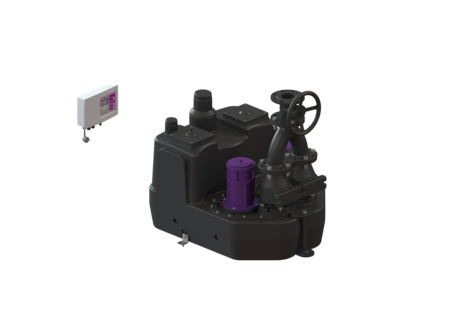

KESSEL Aqualift F XL, 200 L lift. stat. Duo, duo pump, 230 V, shut-off valve Shut-off valve made of cast iron, with 2 submersible SPF 1400 pumps, operating mode S3 - 50 %, pressure pipe connection vertical
- Different performance classes available
- Pressure sensor for reliable pneumatic level measurement
- Maximum operating reliability due to intelligent control unit (Duo)
Item no. | 11007 |
---|---|
GTIN | 4026092056745 |
Price group | 50 |
Aqualift F XL, 200 L lift. stat. Duo, SPF 1400-S3, Cast-iron shut-off val
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: Shut-off valve made of cast iron Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Duo ATEX: no Dimensions Net weight: 186,86 kg Gross weight: 206,86 kg Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Tank volume: 200 l Pumping device Pump: SPF 1400 Number of pumps: 2 Operating mode: S3 - 50 % Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 230 V
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show | |
Retrofit kit Alarm float switch, for lifting station | 28014 | Show | |
Connection adapter Flange socket DN 100, press. pipe PE | 28020 | Show | |
Backflow preventer DN 80, grey cast iron | 28021 | Show | |
Compressor set for air bubbling | 28048 | Show | |
Connection adapter Flange socket DN 80, press. pipe PE | 28067 | Show | |
Flange adapter DN 80 to DN 100, Grey iron | 28068 | Show | |
Flexible coupling DN 80, L: 200 mm | 28662 | Show | |
Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Show | |
Shut-off valve DN 80, Polymer, horizontal | 28682 | Show | |
Shut-off valve DN 100, Polymer, horizontal | 28683 | Show | |
Shut-off valve DN 100, Polymer | 28698 | Show | |
Shut-off valve DN 150, Polymer | 28699 | Show | |
Flange joint DN 100, for polymer fittings | 28712 | Show | |
Flange joint DN 80, for polymer fittings | 28713 | Show | |
Flange adapter DN 80, for polymer fitting | 28714 | Show | |
Shut-off valve DN 80, Polymer, vertical | 28715 | Show | |
Shut-off valve DN 80, Polymer, vertical with flange | 28716 | Show | |
TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Show |
Title | Item no. | ||
---|---|---|---|
Retrofit kit Alarm float switch, for lifting station | 28014 | Show | |
Backflow preventer DN 80, grey cast iron | 28021 | Show | |
Pump drive SPF 1400 230 V, S3, 5 m cable, with capacitor | 28029 | Show | |
Shut-off valve DN 80, grey cast iron, with handwheel | 28041 | Show | |
Y-pipe DN 80 | 28042 | Show | |
Seal DN 80, for flange | 28043 | Show | |
Immersion pipe 5 m Schlauch, incl. screws | 28050 | Show | |
Replacement set pump flange with screw set, flange gasket | 28051 | Show | |
Non-return flap made of polymer, DN 80 | 28074 | Show | |
Control unit Comfort Duo, 230 V | 28746 | Show | |
Seal Rolling ring, DN 100 | 680001 | Show | |
Seal DN 150 | 680003 | Show | |
Battery 9 V block | 680034 | Show | |
Seal Pump flange | 680045 | Show | |
Attachment bracket with screws (2 ea.) | 680046 | Show | |
Screw set galvanised, 14 each | 680047 | Show | |
Pump flange SPF 1400 - SPF 4500 | 680050 | Show | |
Seal for SPF 1400 - SPF 4500 | 680052 | Show | |
Cleaning cover screwed, DN 160 | 680421 | Show |
Manuals | |
---|---|
Test Reports and Certificates | |
Declaration of Performance | |
Declaration of Conformity |
- Control unit (schaltgeraet): Comfort
- TÜV test mark (pruefzeichen): ID 1111241940
- Installation situation (einbausituation): free-standing installation
- CE marking (ce_kennzeichnung): yes
- Type of wastewater (abwasserart_de): with sewage
- Pump (pumpe): SPF 1400-S3
- Impeller type (laufrad_typ): Multi-vane impeller
- Shut-off valve (absperreinrichtung): Shut-off valve made of cast iron
