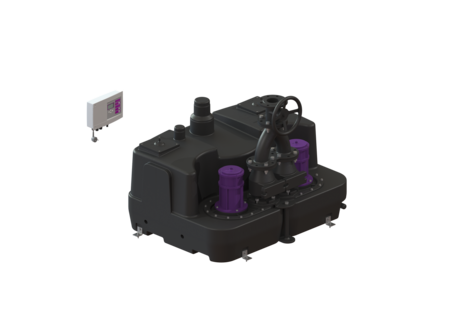

Lifting stati. Aqualift F XL 300l

Duo, SPF 1400-S3,Cast-iron shut-off val.

KESSEL Lifting stati. Aqualift F XL 300l Duo, duo pump, 230 V, operating mode S3 - 50 %, with 2 submersible SPF 1400 pumps, shut-off valve Shut-off valve made of cast iron, Backflow preventer, pressure pipe connection vertical

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 11016
GTIN 4026092056837
Price group 50

Lifting stati. Aqualift F XL 300l Duo, SPF 1400-S3,Cast-iron shut-off val.
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: Shut-off valve made of cast iron Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation System type: Duo Dimensions Net weight: 195,77 kg Gross weight: 215,77 kg Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Tank volume: 300 l Pumping device Pump: SPF 1400 Number of pumps: 2 Length of mains cable for pump: 5 m Operating mode: S3 - 50 % Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Mains frequency: 50 Hz Operating voltage: 230 V
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Retrofit kit Alarm float switch, for lifting station 28014 Show
Backflow preventer DN 80, grey cast iron 28021 Show
Pump motor SPF 1400 / 230 V S3 28029 Show
Shut-off valve DN 80, grey cast iron, with handwheel 28041 Show
Y-pipe DN 80 28042 Show
Seal DN 80, for flange 28043 Show
Immersion pipe, 5 m hose 28050 Show
Replacement set pump flange 28051 Show
Replacement flap backwater valve DN80 28074 Show
Control unit Comfort Duo 230V 28746 Show
Seal Rolling ring, DN 100 680001 Show
Seal DN 150 680003 Show
Battery 9 V block 680034 Show
Seal Pump flange 680045 Show
Attachment bracket with screws (2 ea.) 680046 Show
Screw set galvanised, 14 each 680047 Show
Pump flange SPF 1400 - SPF 4500 680050 Show
Seal for SPF 1400 - SPF 4500 680052 Show
Cleaning cover screwed, DN 160 680421 Show
Manuals
Test Reports and Certificates
Declaration of Performance
Declaration of Conformity
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Pump (pumpe): SPF 1400
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): Shut-off valve made of cast iron
