Lifting stati. Aqualift F XL 300l

Duo, SPF 3000-S3, Cast-iron shut-off val

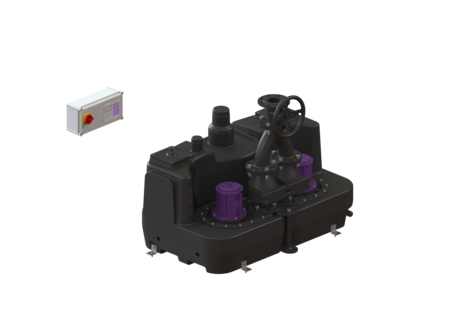

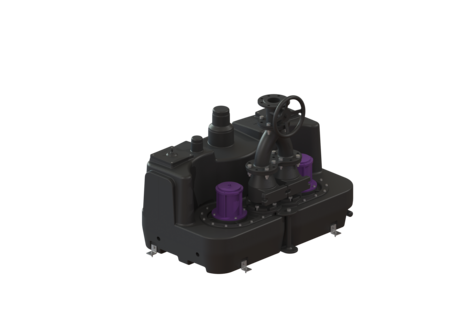

KESSEL Lifting stati. Aqualift F XL 300l Duo, duo pump, 400 V, operating mode S3 - 50 %, with 2 submersible SPF 3000 pumps, alarm generator with Immersion pipe, shut-off valve Shut-off valve made of cast iron, Backflow preventer integrated, pressure pipe connection vertical

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 11052
GTIN 4026092057193
Price group 50

Lifting stati. Aqualift F XL 300l Duo, SPF 3000-S3, Cast-iron shut-off val
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: Shut-off valve made of cast iron Retaining bracket for the lift protection: yes Sound absorption mat: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) System type: Duo Dimensions Net weight: 196 kg Gross weight: 216 kg Length: 1260 mm Width: 889 mm Height: 1042 mm Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Inlet max. scoring (DN): 200 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 175 l Tank volume: 300 l Pumping device Pump: SPF 3000 Number of pumps: 2 Weight, pump: 24 kg Connection type: Direct connection Rated current: 5,4 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,89 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 47 m³/h Max. pumping height: 16 m Speed: 2845 U/min Power P1: 3,2 kW Power P2: 2,7 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 5,4 A
  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162 Show
Retrofit kit Alarm float switch, for lifting station 28014 Show
Connection adapter Flange socket DN 100, press. pipe PE 28020 Show
Backflow preventer DN 80, grey cast iron 28021 Show
Compressor set for air bubbling 28048 Show
Connection adapter Flange socket DN 80, press. pipe PE 28067 Show
Flange adapter DN 80 to DN 100, Grey iron 28068 Show
Screw set for moulded parts DN80/DN100, M16x65 28078 Show
Flexible coupling DN 80, L: 200 mm 28662 Show
Flexible coupling DN 100, for pressure pipes made of PE 28663 Show
Shut-off valve DN 80, Polymer, horizontal 28682 Show
Shut-off valve DN 100, Polymer, horizontal 28683 Show
Shut-off valve DN 100, Polymer 28698 Show
Shut-off valve DN 150, Polymer 28699 Show
Flange joint DN 100, for polymer fittings 28712 Show
Flange joint DN 80, for polymer fittings 28713 Show
Flange adapter DN 80, for polymer fitting 28714 Show
Shut-off valve DN 80, Polymer, vertical 28715 Show
Shut-off valve DN 80, Polymer, vertical with flange 28716 Show
TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
  Title Item no.
Retrofit kit Alarm float switch, for lifting station 28014 Show
Backflow preventer DN 80, grey cast iron 28021 Show
Pump drive SPF 3000 400 V, S3, 5 m cable 28027 Show
Shut-off valve DN 80, grey cast iron, with handwheel 28041 Show
Y-pipe DN 80 28042 Show
Seal DN 80, for flange 28043 Show
Immersion pipe 5 m Schlauch, incl. screws 28050 Show
Replacement set pump flange 28051 Show
Non-return flap 28074 Show
Comfort control unit 400V, Aqualift Duo, 2x4.0-6.3 A 28758 Show
Seal Rolling ring, DN 100 680001 Show
Seal DN 150 680003 Show
Battery 9 V block 680034 Show
Seal Pump flange 680045 Show
Attachment bracket with screws (2 ea.) 680046 Show
Screw set galvanised, 14 each 680047 Show
Pump flange SPF 1400 - SPF 4500 680050 Show
Seal for SPF 1400 - SPF 4500 680052 Show
Cleaning cover screwed, DN 160 680421 Show
Impeller SPF 3000, for Aqualift lifting stations 680642 Show
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • Pump (pumpe): SPF 3000
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): Shut-off valve made of cast iron
