Lifting stati. Aqualift F XL 300l

Duo, SPF 1400-S1

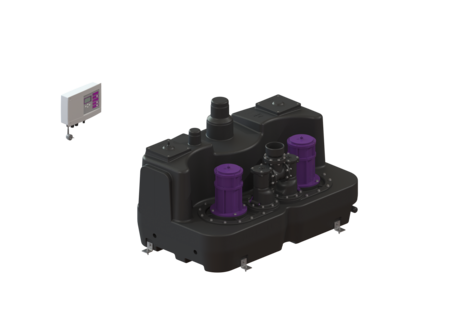

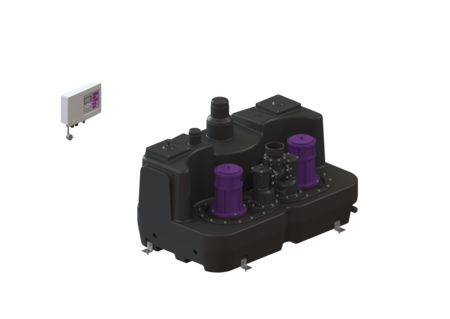

KESSEL Lifting stati. Aqualift F XL 300l Duo, duo pump, 230 V, operating mode S1, with 2 submersible SPF 1400 pumps, alarm generator with Immersion pipe, shut-off valve without shut-off valve, Backflow preventer integrated, pressure pipe connection vertical

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 11090
GTIN 4026092057575
Price group 50

Lifting stati. Aqualift F XL 300l Duo, SPF 1400-S1
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: without shut-off valve Retaining bracket for the lift protection: yes Sound absorption mat: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) System type: Duo Dimensions Net weight: 110,79 kg Gross weight: 130,79 kg Length: 1260 mm Width: 760 mm Height: 770 mm Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Inlet max. scoring (DN): 200 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 175 l Tank volume: 300 l Pumping device Pump: SPF 1400 Number of pumps: 2 Weight, pump: 28 kg Connection type: coded plug Rated current: 7,3 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Cos phi - power factor: 0,99 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 38 m³/h Max. pumping height: 7 m Speed: 1420 U/min Power P1: 1,6 kW Power P2: 1,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Control Control unit: Comfort Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Rated current: 7,3 A
  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162 Show
Retrofit kit Alarm float switch, for lifting station 28014 Show
Connection adapter Flange socket DN 100, press. pipe PE 28020 Show
Backflow preventer DN 80, grey cast iron 28021 Show
Compressor set for air bubbling 28048 Show
Connection adapter Flange socket DN 80, press. pipe PE 28067 Show
Flange adapter DN 80 to DN 100, Grey iron 28068 Show
Flexible coupling DN 80, L: 200 mm 28662 Show
Flexible coupling DN 100, for pressure pipes made of PE 28663 Show
Shut-off valve DN 80, Polymer, horizontal 28682 Show
Shut-off valve DN 100, Polymer, horizontal 28683 Show
Shut-off valve DN 100, Polymer 28698 Show
Shut-off valve DN 150, Polymer 28699 Show
Flange joint DN 100, for polymer fittings 28712 Show
Flange joint DN 80, for polymer fittings 28713 Show
Flange adapter DN 80, for polymer fitting 28714 Show
Shut-off valve DN 80, Polymer, vertical 28715 Show
Shut-off valve DN 80, Polymer, vertical with flange 28716 Show
TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
Potential-free contact Additio. circuit board for control units 80072 Show
  Title Item no.
Retrofit kit Alarm float switch, for lifting station 28014 Show
Immersion pipe 5 m Schlauch, incl. screws 28050 Show
Replacement set pump flange 28051 Show
Pump drive SPF 1400 230 V, S1, 5 m cable, with capacitor 28066 Show
Flexible coupling DN 100, for pressure pipes made of PE 28663 Show
Flap housing 28677 Show
Control unit Comfort Duo, 230 V 28746 Show
Seal DN 150 680003 Show
Battery 9 V block 680034 Show
Seal Pump flange 680045 Show
Attachment bracket with screws (2 ea.) 680046 Show
Screw set galvanised, 14 each 680047 Show
Pump flange SPF 1400 - SPF 4500 680050 Show
Seal for SPF 1400 - SPF 4500 680052 Show
Flap set Rolling ring, flap, flap holder 680053 Show
Flap housing for Duo systems, without shut-off valve 680061 Show
Cleaning cover screwed, DN 160 680421 Show
Impeller SPF 1400/1500, Aqualift lifting stations 680643 Show
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • Pump (pumpe): SPF 1400
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): without shut-off valve
