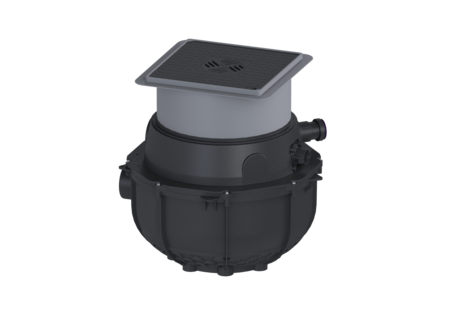

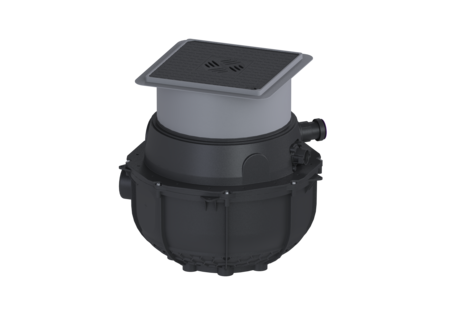

Shell Kit Aqualift M Underfloor
black GTF 1200 Mono
KESSEL Shell Kit Aqualift M Underfloor black GTF 1200 Mono, wastewater without sewage, floor slab installation, type of cover Cover plate with slotted cover
| Item no. | 280501S-RBK |
|---|---|
| GTIN | 4026092106945 |
| Price group | 20 |
Shell Kit Aqualift M Underfloor black GTF 1200 Mono
For combination with a KESSEL technology kit for creating a Mono lifting station for wastewater without sewage with a GTF1200 wastewater pump. The ready to plug in lifting station for wastewater without sewage is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is pre-assembled for final installation on site. KESSEL shell kit consisting of: - With vertically adjustable upper section for continuous height and level compensation and integrated floor drain - PE collection tank, resistant to aggressive wastewater and 3 m groundwater - Includes backflow preventer for the pressure pipe - Includes connection socket for inlet and conduit pipe General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 15,7 kg Gross weight: 15,7 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 490 - 620 mm Type of height adjustability: vertically adjustable upper section Length: 617 mm Width: 585 mm Packaging dimension: length: 590 mm Packaging dimension: width: 590 mm Packaging dimension: height: 675 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (DN): 100 Pumping volume: 16 l Tank volume: 65,00 l Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Max. flooring height: 16 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
![]() | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show |
![]() | Alarm unit with electronic probe | 20222 | Show |
![]() | Alarm unit with optical probe | 20223 | Show |
![]() | Alarm unit with optical probe 10 m | 20224 | Show |
![]() | System isolator CleverLoop L | 23000 | Show |
![]() | Ventilation valve CleverVent | 23001 | Show |
![]() | Adapter DN 50/70 | 27126 | Show |
![]() | Adapter DN 100/70 | 27602 | Show |
![]() | Retrofit kit Alarm float switch | 28016 | Show |
![]() | Pressure pipe set 5 m pressure hose, DA 40 mm | 28040 | Show |
![]() | Compressor set for air bubbling | 28048 | Show |
![]() | Pressure pipe set with 5 m pressure hose, DA 50 mm | 28062 | Show |
![]() | Adapter for pressure pipe connection, DN 32, PE | 28086 | Show |
![]() | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Show |
![]() | Aerial with magnetic base for TeleControl Modem, Cable 2.5 m | 28793 | Show |
![]() | Extension cable for aerial with magnetic base, L: 2 m | 28794 | Show |
![]() | Inlet socket DN 50, with seal, Threaded ring | 39005 | Show |
![]() | Inlet socket DN 70, with seal, Threaded ring | 39007 | Show |
![]() | Inlet socket DN 100, with seal, Threaded ring | 39100 | Show |
![]() | Odour trap Multistop, System 125 | 48500 | Show |
![]() | Odour trap Megastop | 48550 | Show |
![]() | Hair filter Polymer, for System 125 bathroom drains | 48700 | Show |
![]() | Hole saw for DN 50/70/100 | 500101 | Show |
![]() | Pressure hose Sold by the metre, 6x4 mm 100 | 680071 | Show |
![]() | Odour trap for The Ultraflat 79 | 680696 | Show |
![]() | Drain body for cover plate for odour trap 50 mm, black | 680795 | Show |
![]() | Drain body for cover plate for Multistop, black | 680796 | Show |
![]() | Drain body for cover plate for odour trap 50 mm, grey | 680797 | Show |
![]() | Drain body for cover plate for Multistop, grey | 680798 | Show |
![]() | Adapter DN 40/50 | 681111 | Show |
![]() | Potential-free contact Additio. circuit board for control units | 80072 | Show |
![]() | Potential-free contact Extension set for control units | 80074 | Show |
![]() | Cable accessories Extension for probe | 80889 | Show |
![]() | Cable accessories Extension for pump | 80891 | Show |
![]() | Cover plate surface water resistant, black 366x366mm | 830050 | Show |
![]() | Cover plate surface water resistant, tileable | 830052 | Show |
![]() | Extension section H: 200 mm | 83070 | Show |
![]() | Extension section H: 234 mm, with flange and mating flange | 83073 | Show |
![]() | Extension section H: 360 mm, with central flange | 83075 | Show |
![]() | Waterproof concrete install. kit OD: 40 mm, for building contractors | 83077 | Show |
![]() | Waterproof concrete install. kit OD: 50 mm, for building contractors | 83079 | Show |
![]() | Seal for pipe penetration, DN 50 | 850114 | Show |
![]() | Seal for pipe penetration, DN 70 | 850116 | Show |
![]() | Seal for pipe penetration, DN 100 | 850117 | Show |
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| Test Reports and Certificates | |
| Declaration of Conformity |
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation): floor slab installation
- Type of wastewater (abwasserart_de):
without sewage
- Type of cover (abdeckungsart): Cover plate with slotted cover
- (pumpe):
