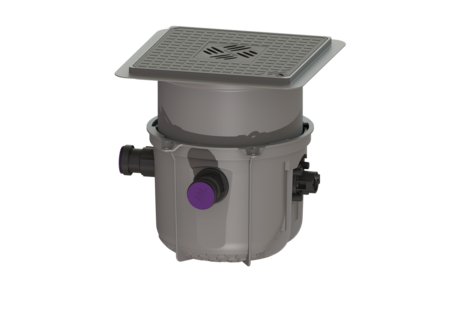

Lifting station Minilift S

KTP 300, resistant, Floor slab, black

PDF product data sheet

The ready to plug in small lifting station for faecal-free wastewater is suitable for wastewater drainage of individual sanitary appliances. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is preassembled for final installation on site. - with telescopic upper section for continuously adjustable height and level compensation and integrated floor drain - bottom section made of PP, resistant to aggressive wastewater - system resistant to saline media and condensate from condensing boiler systems - including backflow preventer for the pressure pipe - including DN 50 sockets for inlet and cable conduit - pump with multi-vane impeller for maximum operating reliability - including float switch for level measurement

  • Space-saving installation in the floor slab
  • System ready to plug in
  • Easy maintenance
Item no. 280570SC
GTIN 4026092093511
Discount group 5

Lifting station Minilift S KTP 300, resistant, Floor slab, black
The ready to plug in small lifting station for faecal-free wastewater is suitable for wastewater drainage of individual sanitary appliances. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is preassembled for final installation on site. - with telescopic upper section for continuously adjustable height and level compensation and integrated floor drain - bottom section made of PP, resistant to aggressive wastewater - system resistant to saline media and condensate from condensing boiler systems - including backflow preventer for the pressure pipe - including DN 50 sockets for inlet and cable conduit - pump with multi-vane impeller for maximum operating reliability - including float switch for level measurement Version: Type of system: Single station Pump control: Float switch Backflow preventer: integrated Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Delivery state: Installation-ready (connection parts must be connected on site) Installation situation: floor slab installation Type of wastewater: wastewater without sewage General characteristics: Colour: grey Standard: EN 12050-2 Dimensions: Length: 460 mm Width: 380 mm Tank: Inlet nominal size (DN): 50 mm Tank volume: 26 l Pressure pipe connection (DN): 32 mm Pressure pipe connection (OD): 40 mm Installation depth: 330 - 460 mm Pumping volume: 7 l Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: silver grey Load class: K 3 (EN 1253-1) Length: 366 mm Width: 366 mm Locking: Lock & Lift Free passage: 10 mm Pumping device: Number of pumps: 1 Max. pumping capacity: 8 m3/h Max. pumping height: 6 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S1 Power P1: 0.34 kW Power P2: 0.21 kW Speed: 2,800 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: Schuko (earthed contact) 2-pin Weight: 4 kg Impeller type: Multi-vane impeller Length of mains cable for pump: 5 m Rated current: 1.6 A Protection class (pump): IP 68 (3m) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated Insulation class: F Control: Motor protection switch: yes Type of level measurement: mechanical Level measurement instrument: Float switch

Video

  Title Item no.
  Title Item no.
  Title Item no.
Basic warning device with electronic probe 20222
Basic warning device with optical probe 20223
Adapter DN 50/70 27126
Adapter DN 100/70 27602
Pressure pipe set 5 m pressure hose, DA 40 mm 28040
Adapter for pressure connection PE DA40 28086
Inlet socket DN 50, with seal, Threaded ring 39005
Inlet socket DN 70, with seal, Threaded ring 39007
Odour trap Multistop, System 125 48500
Odour trap Megastop 48550
Hole saw for DN 50/70/100 500101
Odour trap for The Ultraflat 79 680696
Drain body for cover plate for odour trap 50 mm, black 680795
Drain body for cover plate for Multistop, black 680796
Drain body for cover plate for odour trap 50 mm, grey 680797
Drain body for cover plate for Multistop, grey 680798
Potential-free contact Extension set for control units Basic 80074
Cover, watertight, black 830050
Cover, watertight, tile-over 830052
Extension section deeper installation, with flange 830070
Seal for pipe penetration, DN 50 850114
Seal for channel passage 75 mm 850116
  Title Item no.
Impeller replacement set KTP 300 28039
Inlet socket DN 50, with seal, Threaded ring 39005
Slotted cover 138x138 mm, Polymer 60101S
Locking key for Ecoguss slotted gratings, Lock & Lift 67007
Intake filter 680013
Roll-Ring 680014
Plug 680018
Joint 680067
Pump connection with seal and flap 680475
Pressure pipe connection with seal and screws 680758
Pressure pipe connection KTP 300 680759
Pump connection Minilift, Aqualift S 680760
Flap housing Mono, with pump connector 680761
Turn fastener for pump connection lock 680762
Replacement pump KTP 300 res., Minilift S, free-standing set-up 680954
Staufix sealing gasket cover plate 686114
Staufix lip seal 686115
KESSEL cover plate, black slotted cover 830053
Upper section, height up to 170mm 830061
  • Installation situation (ATTR-1): floor slab installation
  • Declaration of conformity (ATTR-303): 009-082-D
  • External monitoring (ATTR-A8): LGA
  • Free passage (ATTR-180): 10  MMT
  • Country of origin (ATTR-322): DE
  • - (ATTR-370):
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): submersible pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for alternating current
  • E-motor, type of startup (ATTR-271): direct
  • Pump casing material (ATTR-272): Polymer
  • Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
  • Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
  • Pump electrical connection (ATTR-277): 1/N/PE 230V
  • Startup circuit for three-phase connection or three-phase current (ATTR-278):
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): RSSR
  • Number of operating pumps (ATTR-281): 1
  • Minimum pumped media temperature (ATTR-282): 0  CEL
  • Maximum operating pressure (Pmax) (ATTR-283): 600  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Vertical installation (ATTR-286): yes
  • Pump (ATTR-4):
  • Number of pumps (ATTR-181): 1
  • Impeller type (ATTR-8): Multi-vane impeller
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Operating mode (ATTR-10): S1
  • Power P1 (ATTR-F4): 0.3  KWT
  • Power P2 (ATTR-F5): 0.2  KWT
  • Speed (ATTR-F2): 2,800  UMIN
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 1.6  AMP
  • Max. pumping capacity (ATTR-F7): 8  MQH
  • Max. pumping height (ATTR-F8): 6  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): Schuko (earthed contact) 2-pin
  • Protection class (pump) (ATTR-125): IP 68 (3m)
  • Length of mains cable for pump (ATTR-11): 5  MTR
  • Temperature monitoring (ATTR-135): integrated
  • Weight (ATTR-191): 4  KGM
  • Insulation class (ATTR-193): F
  • Net weight (ATTR-A3A): 10.8  KGM
  • Gross weight (ATTR-A3B): 11.8  KGM
  • Type of system (ATTR-2): Single station
  • Backflow preventer (ATTR-165): integrated
  • Pump control (ATTR-134): Float switch
  • Resistant (ATTR-338): Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems

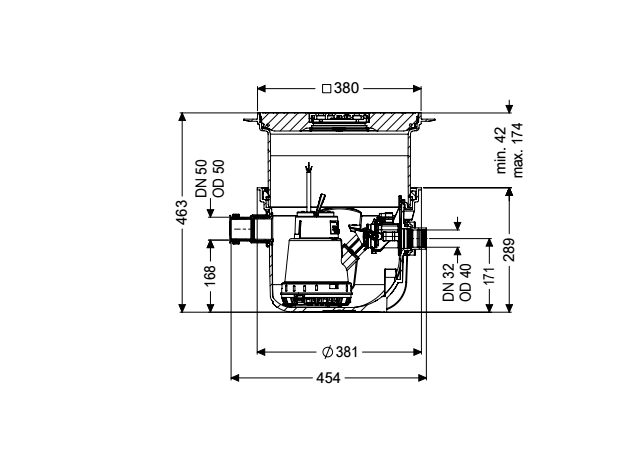

  • Length (ATTR-A6A): 460  MMT
  • Width (ATTR-A6B): 380  MMT
  • Volume (ATTR-320): 0.1  MTQ
  • Packaging dimension: length (ATTR-325): 460  MMT
  • Packaging dimension: width (ATTR-326): 460  MMT
  • Packaging dimension: height (ATTR-327): 500  MMT
  • Dimensions (ATTR-323): 460X460X500MM
  • Number of packages (ATTR-321): 0
  • Inlet nominal size (DN) (ATTR-B1CA): 50  MMT
  • Installation depth (ATTR-B2_VB): 330  MMT
  • Pressure pipe connection (DN) (ATTR-B17): 32  MMT
  • Pressure pipe connection (OD) (ATTR-B18): 40  MMT
  • Tank volume (ATTR-B9): 26  LTR
  • Pumping volume (ATTR-B10): 7  LTR
  • Type of cover (ATTR-A21): Cover plate with slotted cover
  • Colour of cover (ATTR-A2A): silver grey
  • Load class (ATTR-A2B): K 3 (EN 1253-1)
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): Polymer
  • Length (ATTR-A2M): 366  MMT
  • Width (ATTR-A2N): 366  MMT
  • Type of level measurement (ATTR-7A): mechanical
  • Level measurement instrument (ATTR-7B): Float switch
  • Motor protection switch (ATTR-172): yes
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Declaration of Performance (DOP) (ATTR-292): 009-082
  • Wastewater quantity (ATTR-310): Low
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Colour (ATTR-102): grey
  • Standard (ATTR-9): EN 12050-2
  • CE marking (ATTR-A5B): yes
  • Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Lifting stations
  • Product type (M-ATTR-003): Lifting station
  • Product family (M-ATTR-004): Minilift
  • Product name (M-ATTR-005): Minilift S
  • Start-up current (ATTR-285): 3.8  AMP
